CHART()

CHART()

구문: CHART(chartOption() [,size()] [, theme()] [, chartJSCode()]) Since v8.0.8

옵션

chartOption()

구문: chartOption( { Apache ECharts 옵션 JSON } )

chartJSCode()

구문: chartJSCode( { 사용자 정의 JavaScript 코드 } )

size()

구문: size(width, height)

  • width string: 차트 너비(예: '800px')
  • height string: 차트 높이(예: '800px')

theme()

구문: theme(name)

  • name string: 테마 이름

차트 테마를 적용합니다. 사용 가능한 테마는 white, dark, chalk, essos, infographic, macarons, purple-passion, roma, romantic, shine, vintage, walden, westeros, wonderland 입니다. 각 테마 미리보기는 아래 섹션을 참고해 주십시오.

plugins()

구문: plugins(plugin...)

  • plugin string: 사전에 정의된 플러그인 이름 또는 플러그인 모듈 URL
사전 정의 플러그인실제 모듈 경로
liquidfill/web/echarts/echarts-liquidfill.min.js
wordcloud/web/echarts/echarts-wordcloud.min.js
gl/web/echarts/echarts-gl.min.js

예시

새로운 CHART() 함수는 세밀한 설정을 통해 다양한 시각화를 구현할 수 있으며, 기존 CHART_LINE(), CHART_BAR(), CHART_SCATTER(), CHART_LINE3D(), CHART_BAR3D(), CHART_SCATTER3D() 함수를 대체합니다.

Line

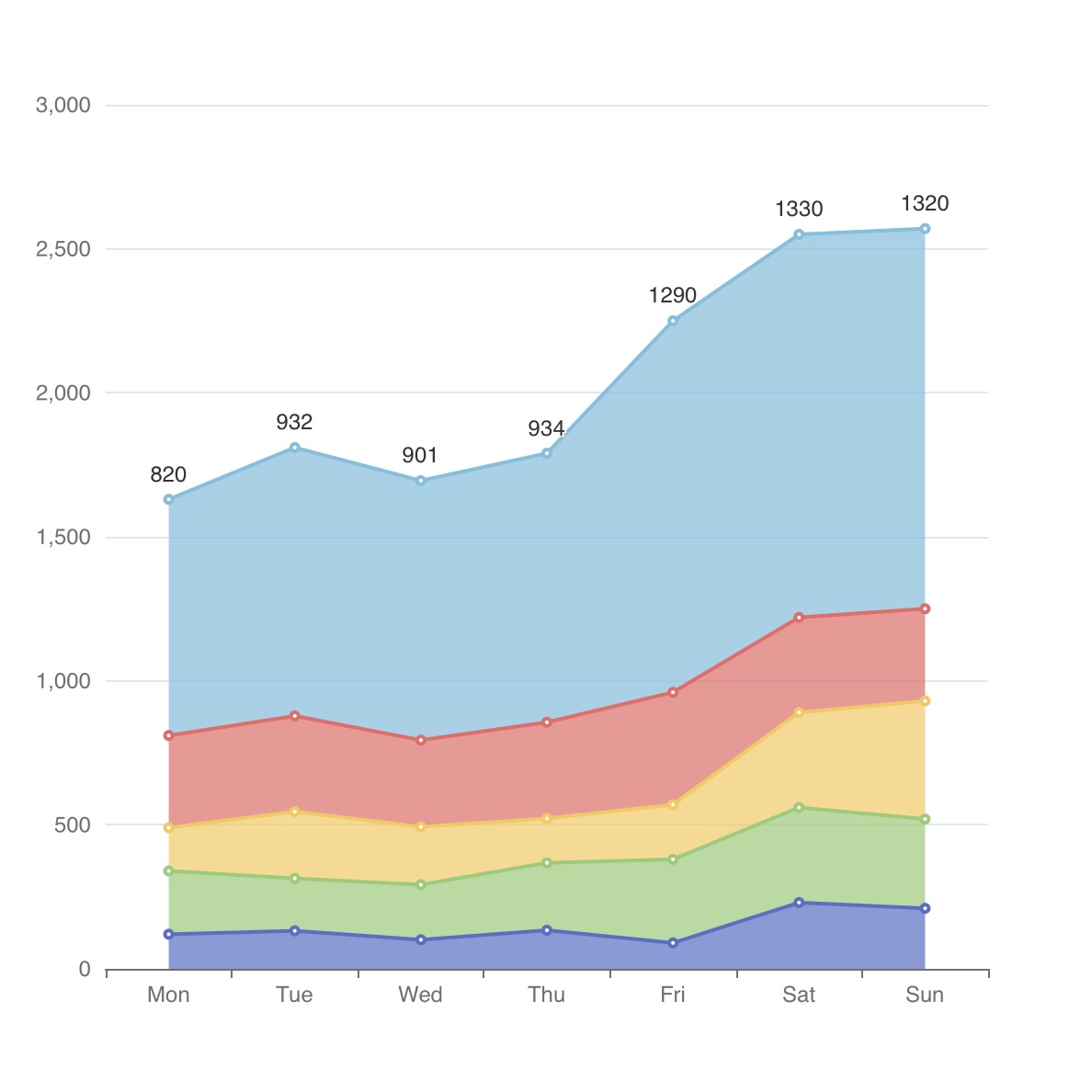

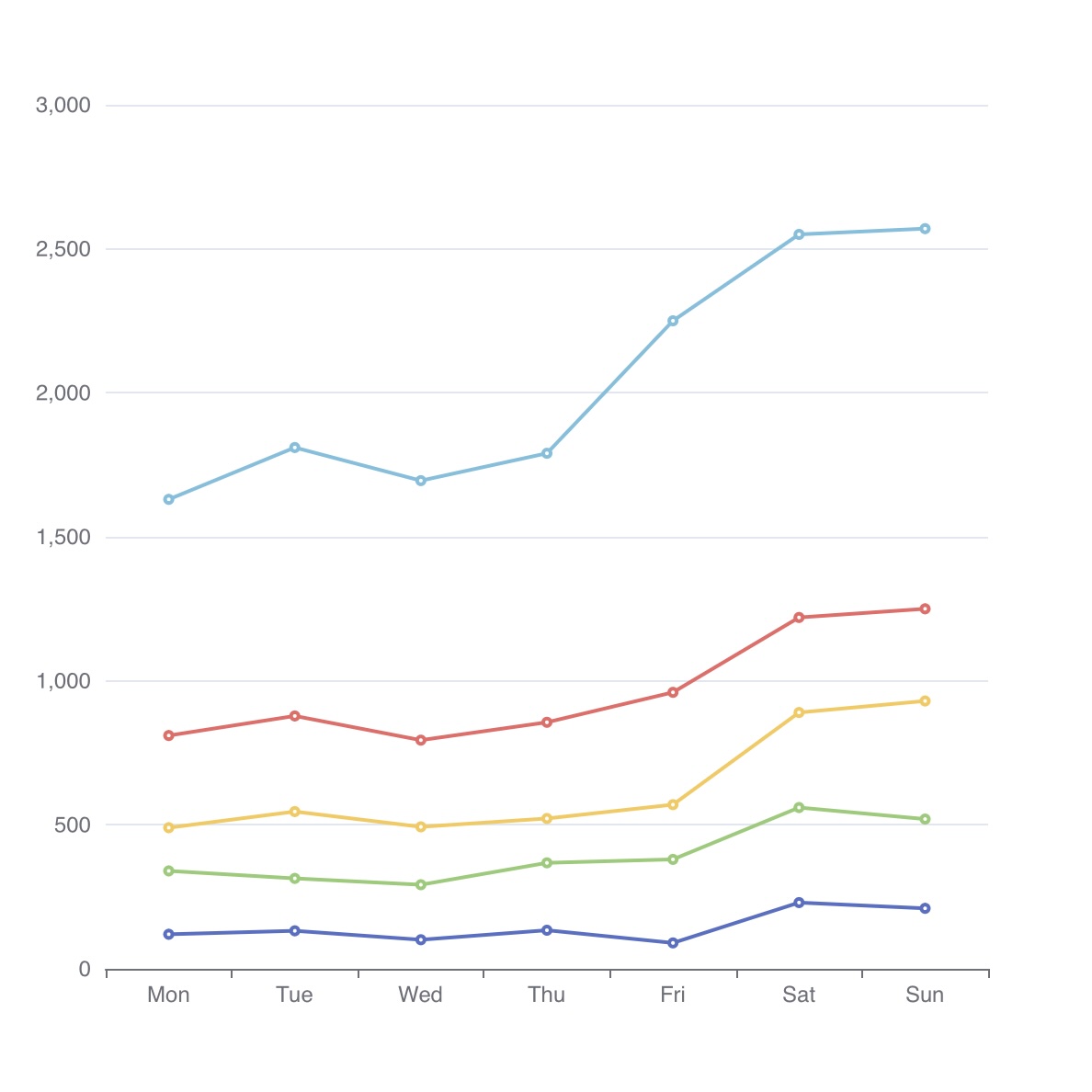

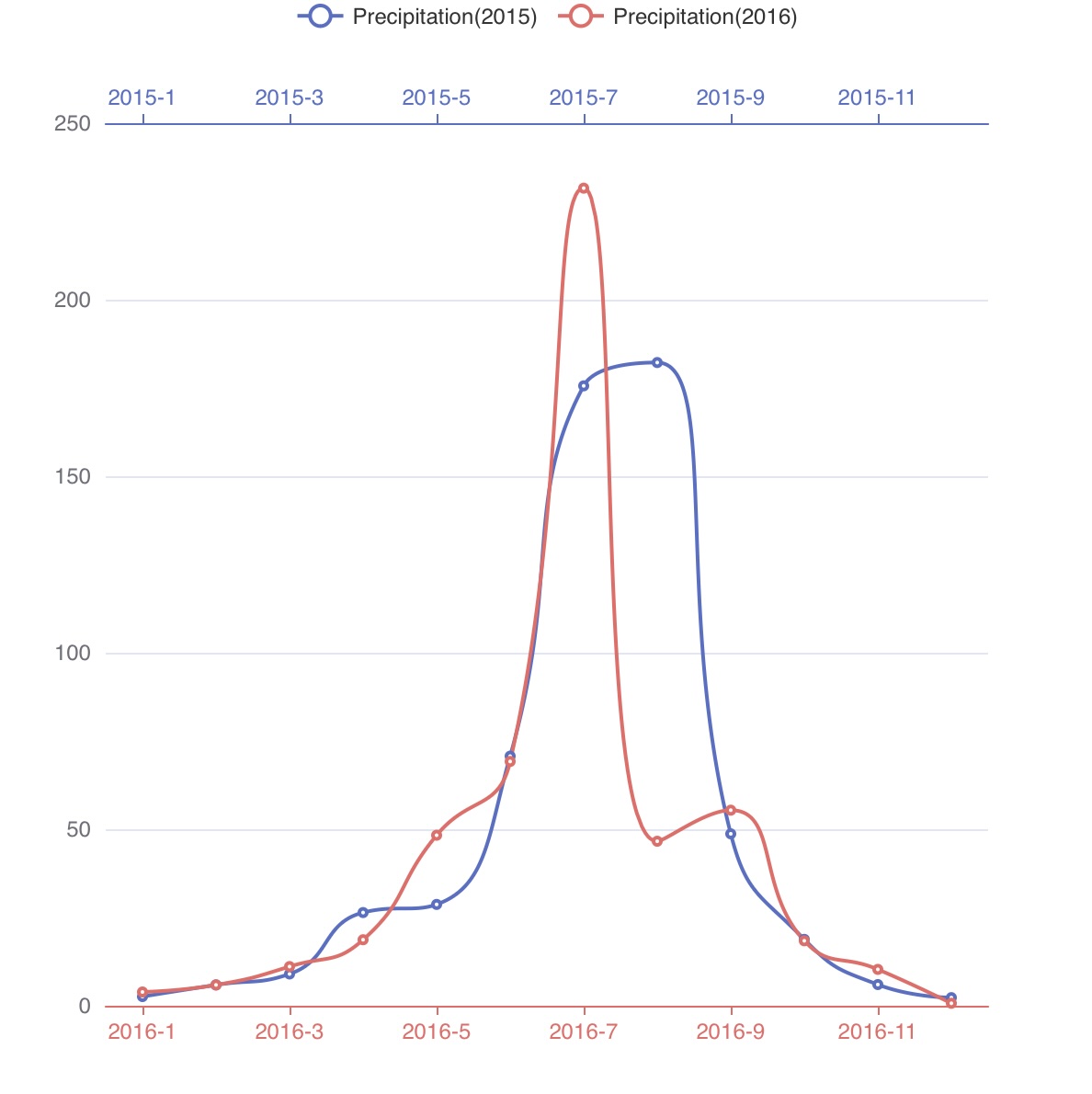

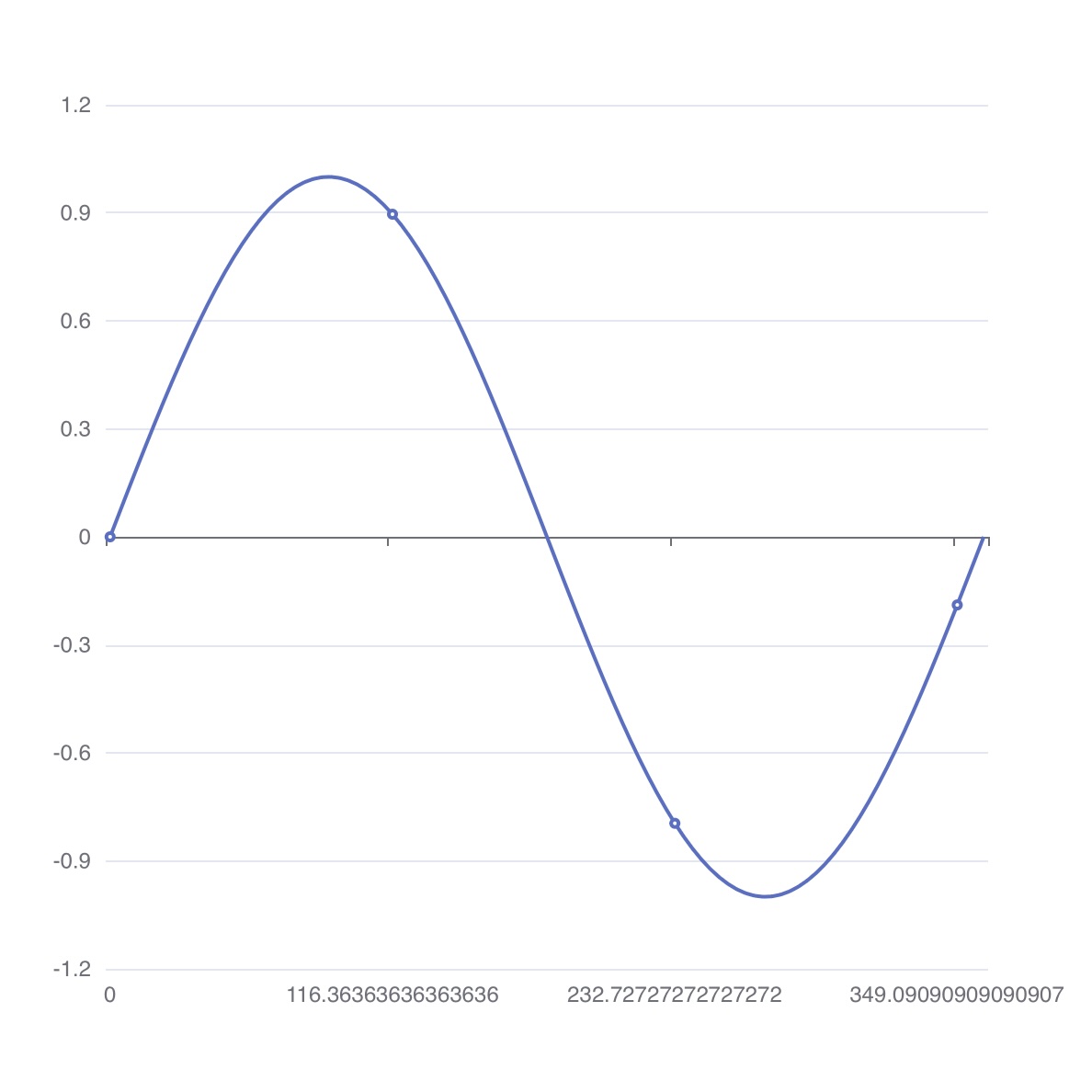

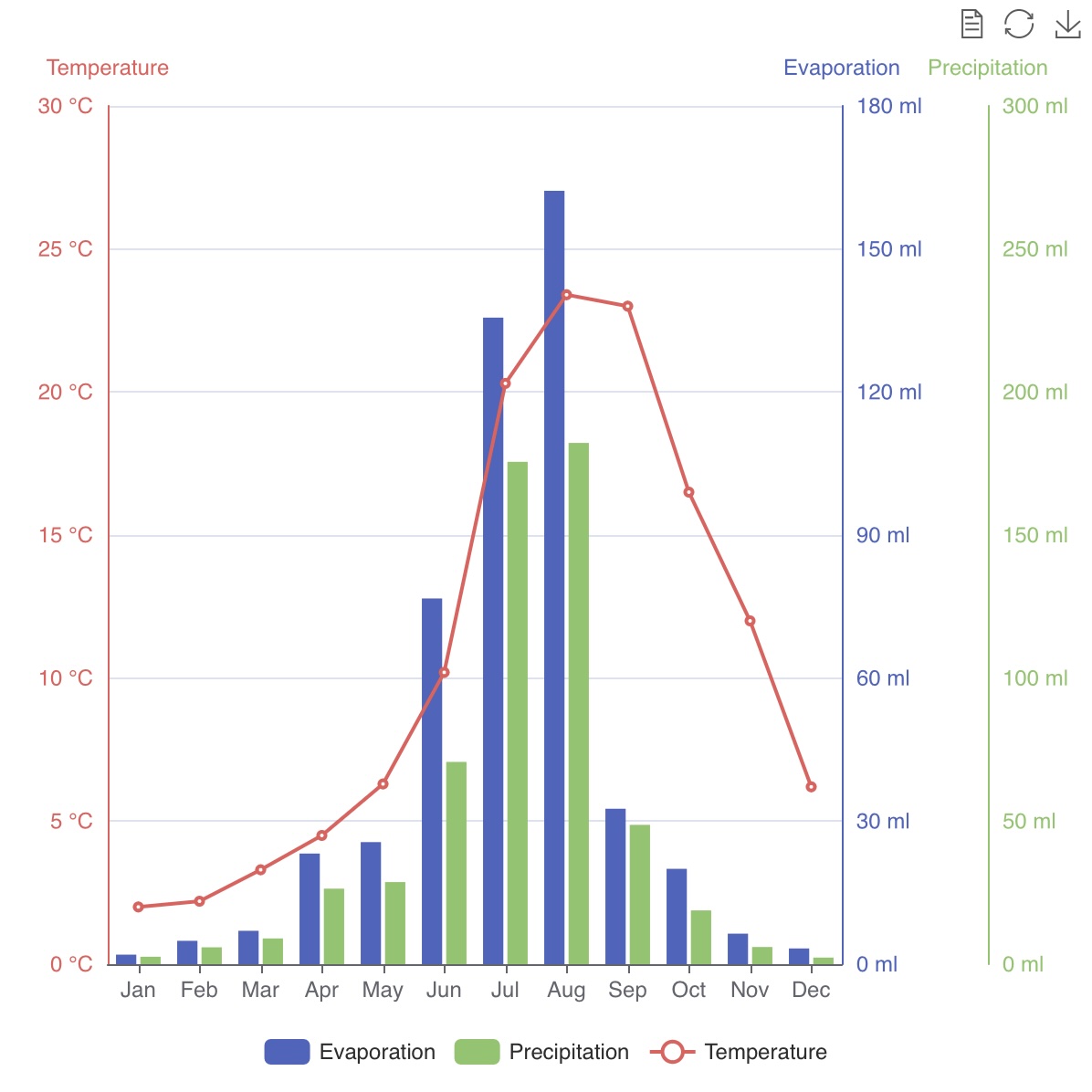

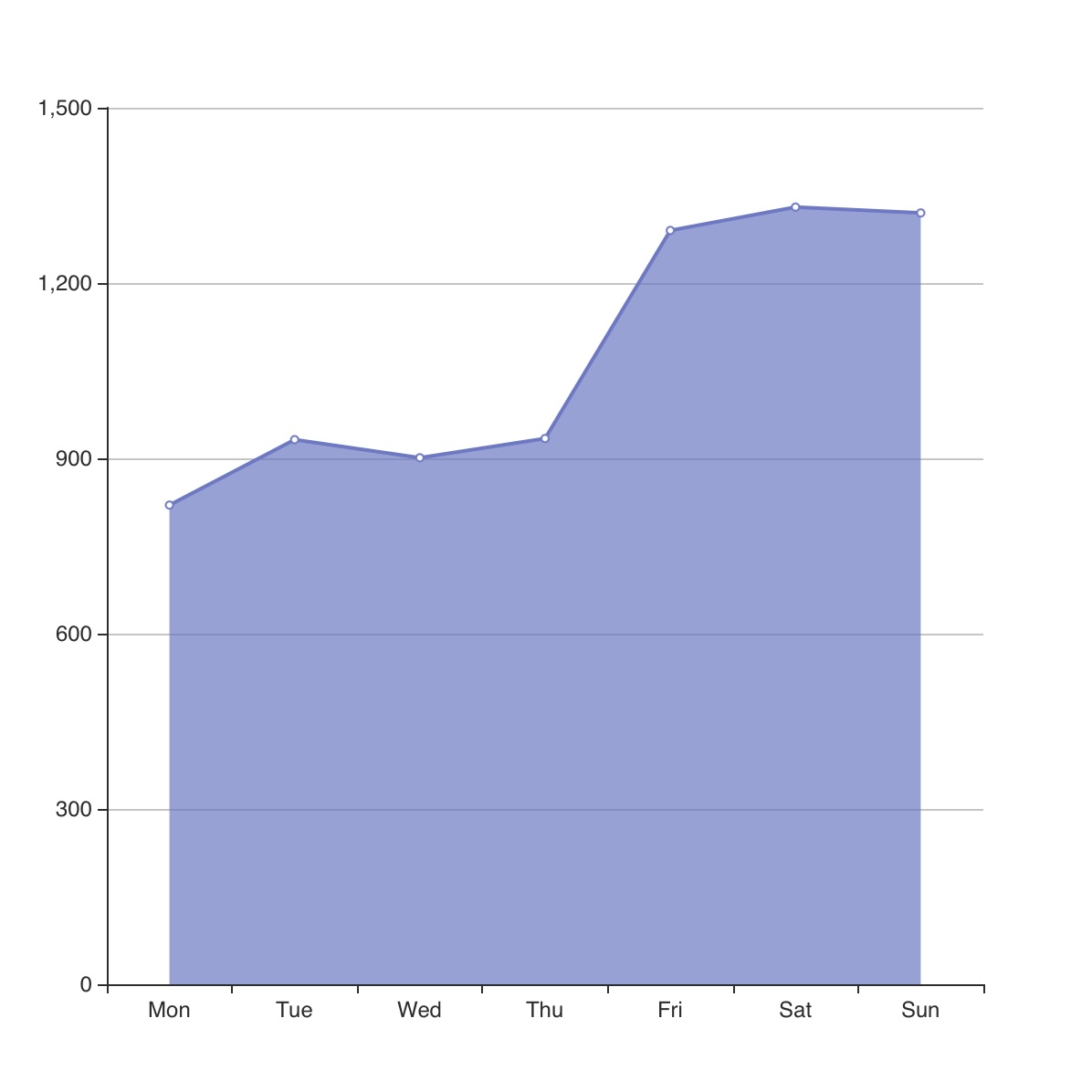

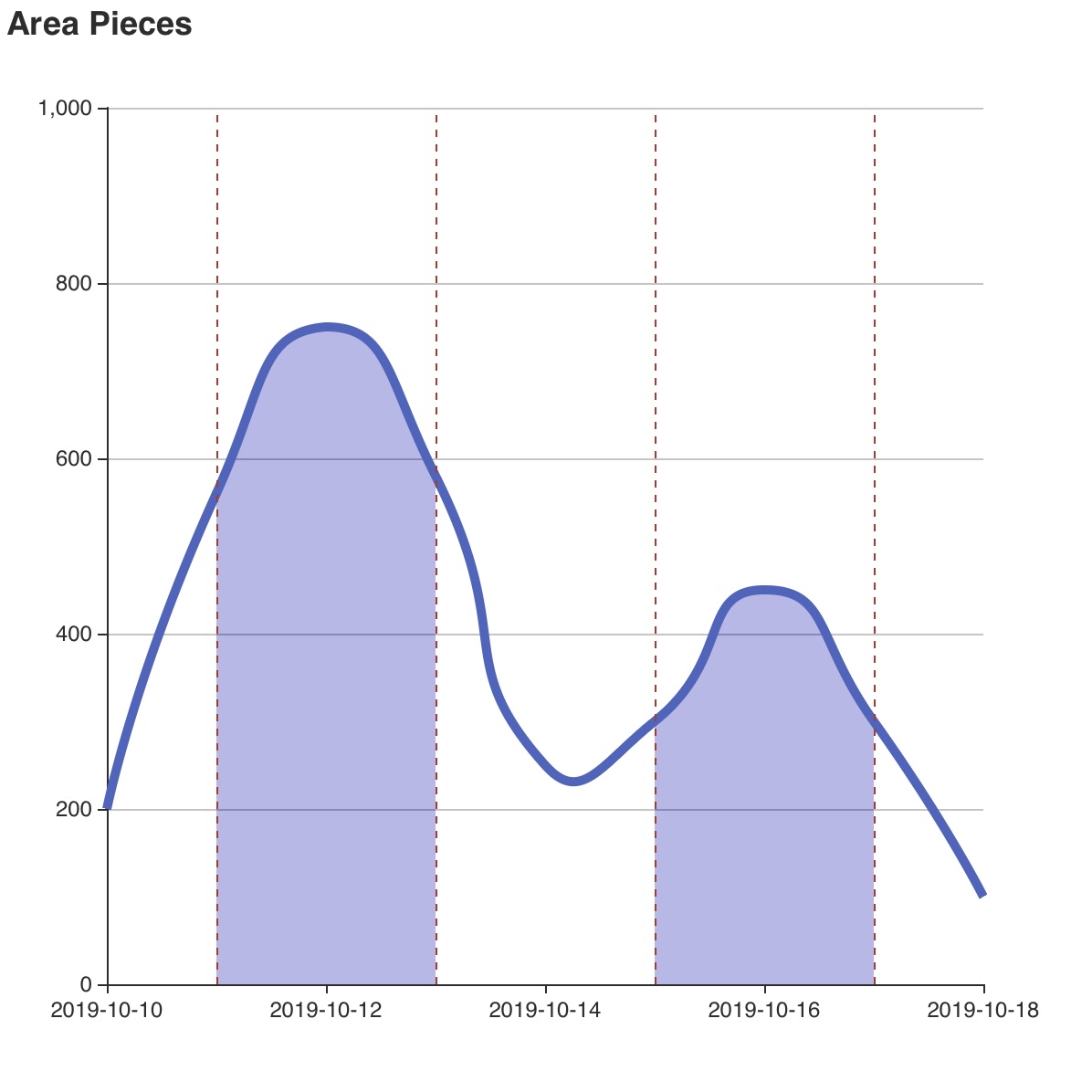

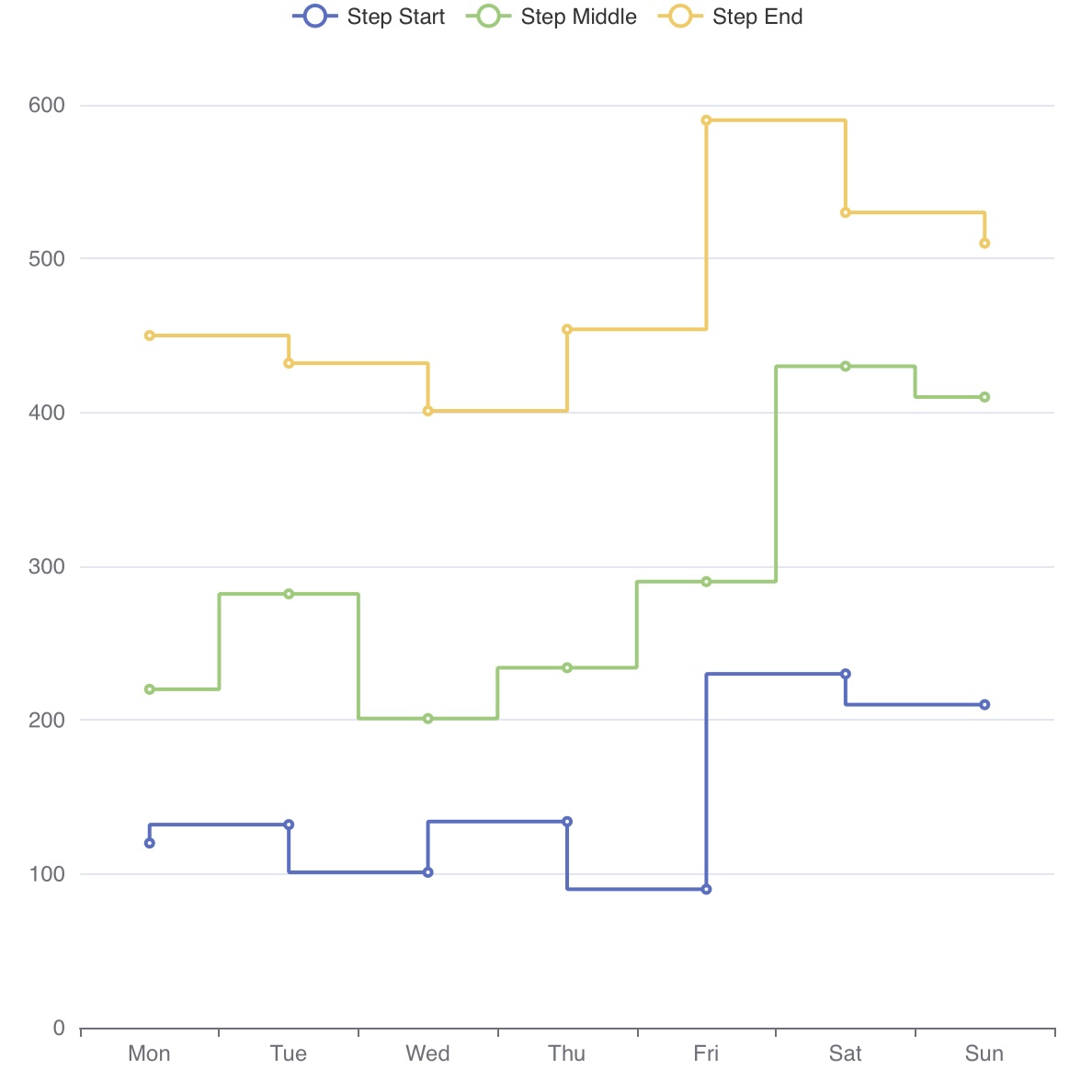

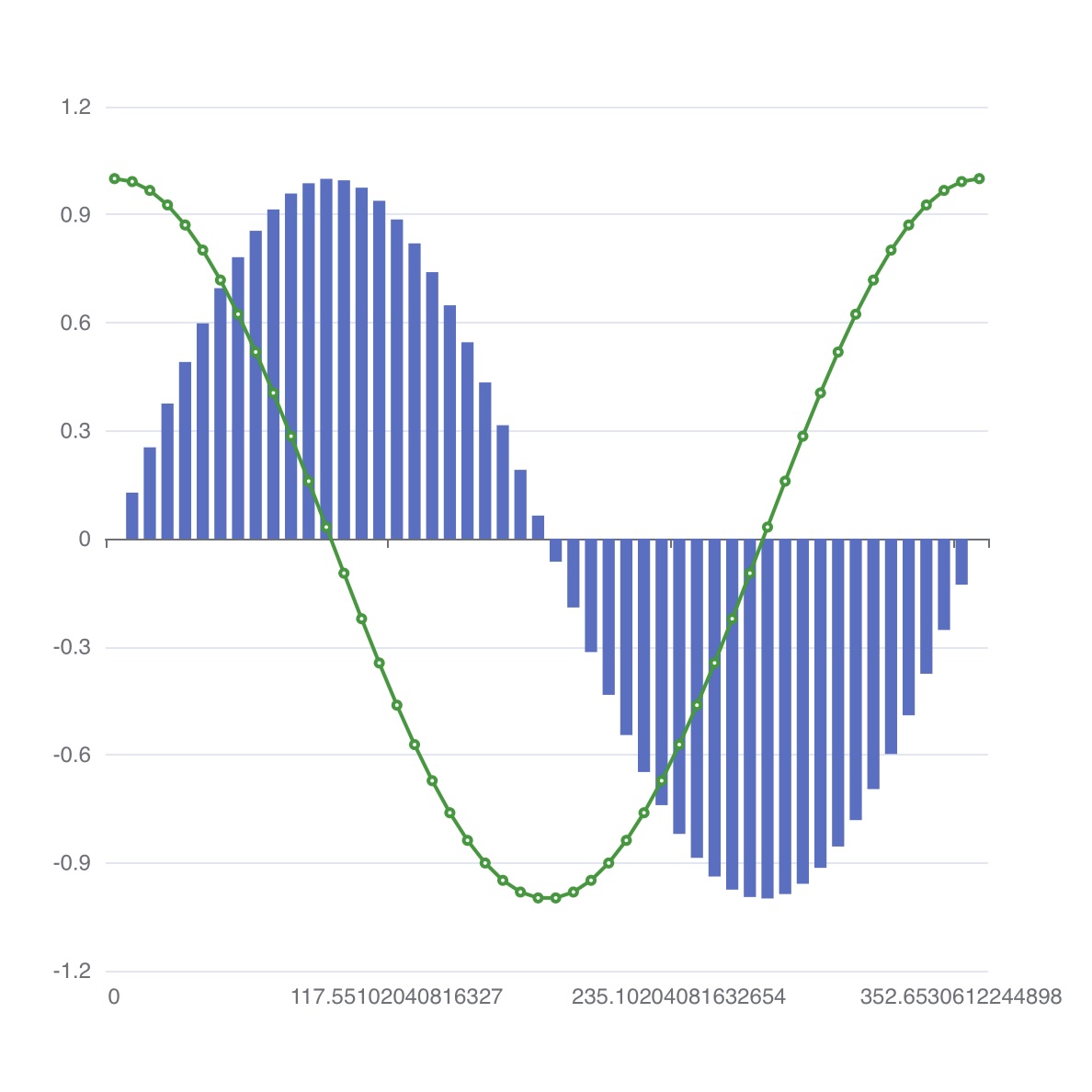

Basic Line ChartBasic Line Chart Basic Area ChartBasic Area Chart Stacked Line ChartStacked Line Chart Stacked Area ChartStacked Area Chart Area PiecesArea Pieces Step LineStep Line Multiple X axesMultiple X axes Multiple Y axesMultiple Y axes Basic MixBasic Mix
Line and Bar Series

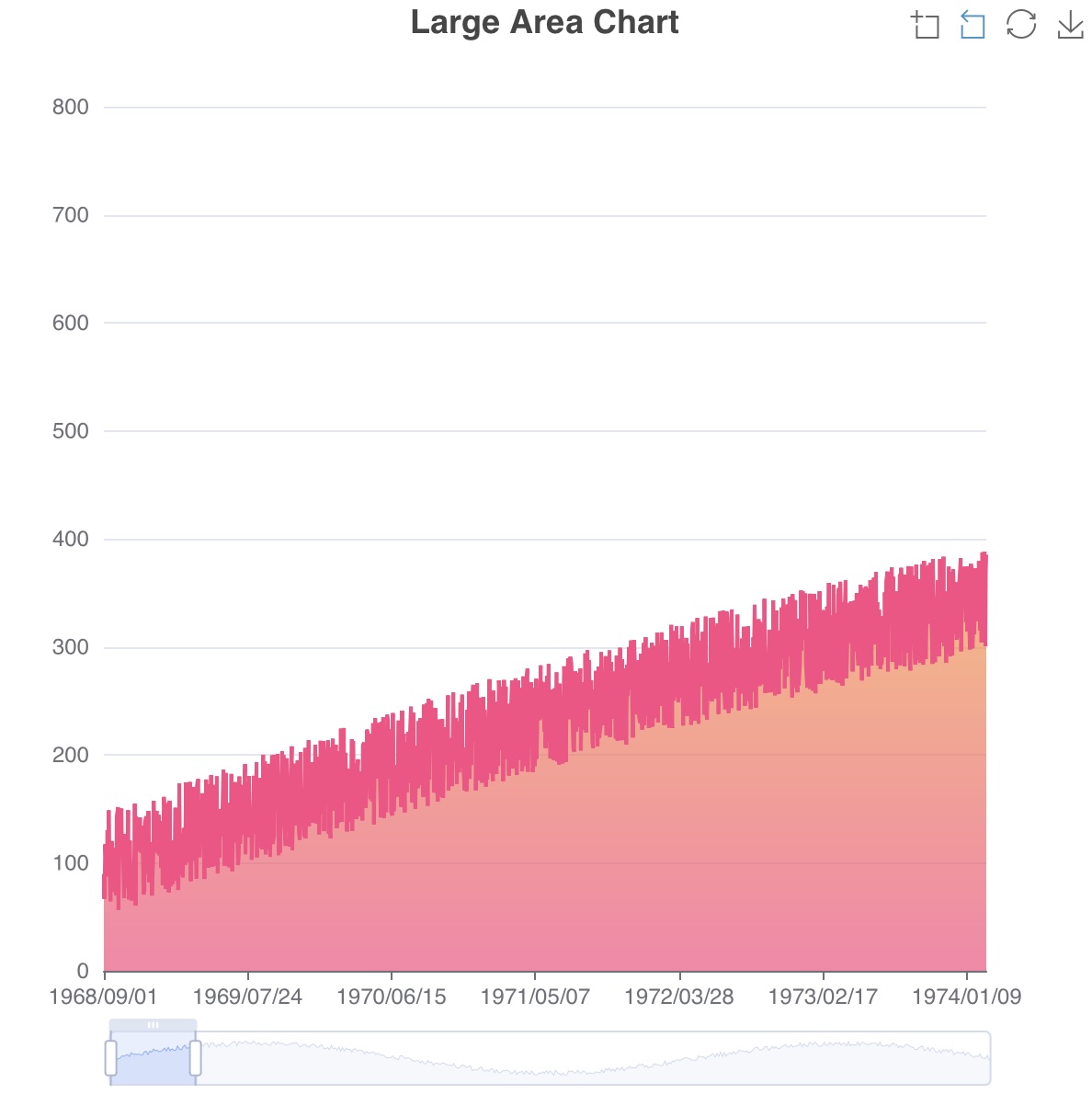

Large Area ChartLarge Area Chart
lttb downsampling

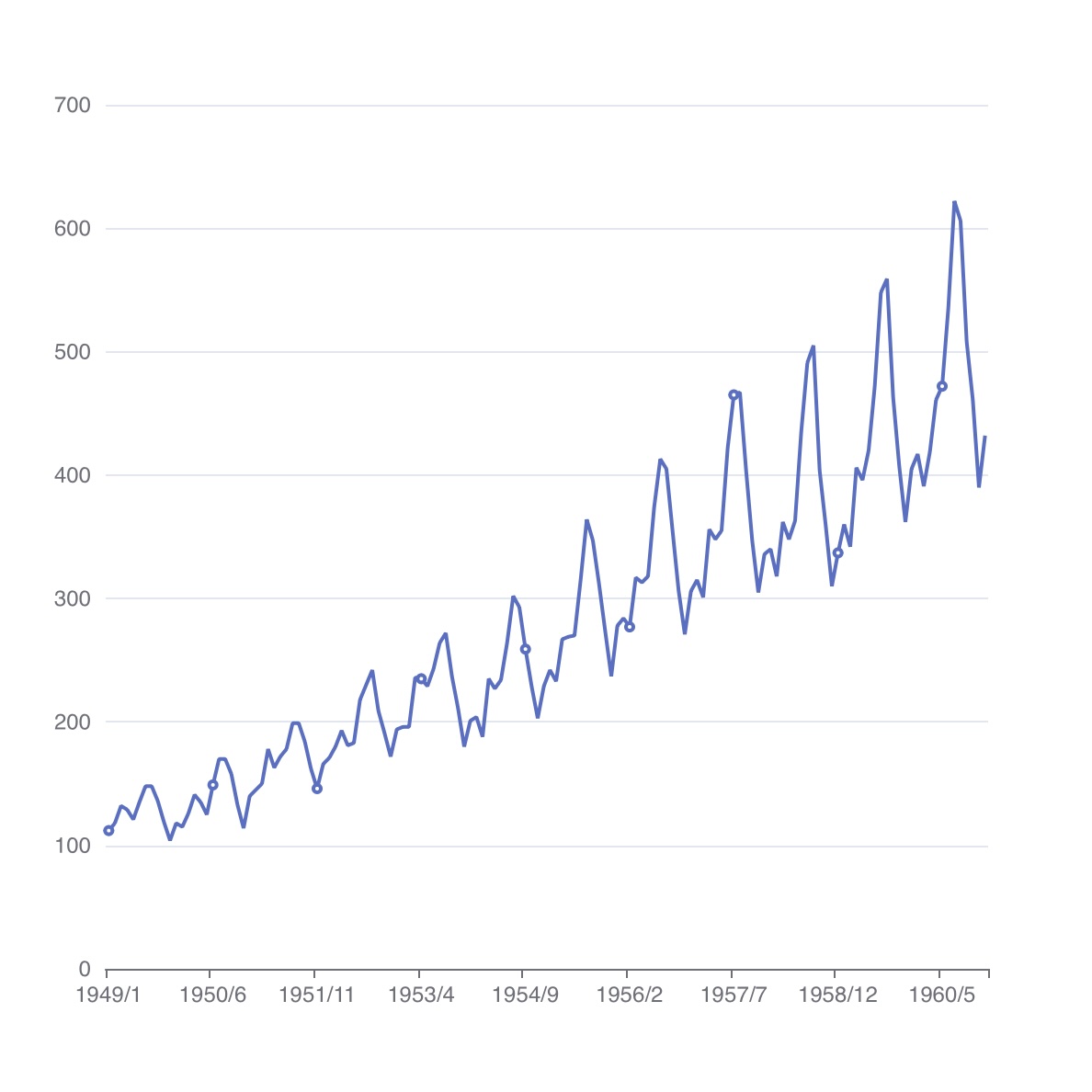

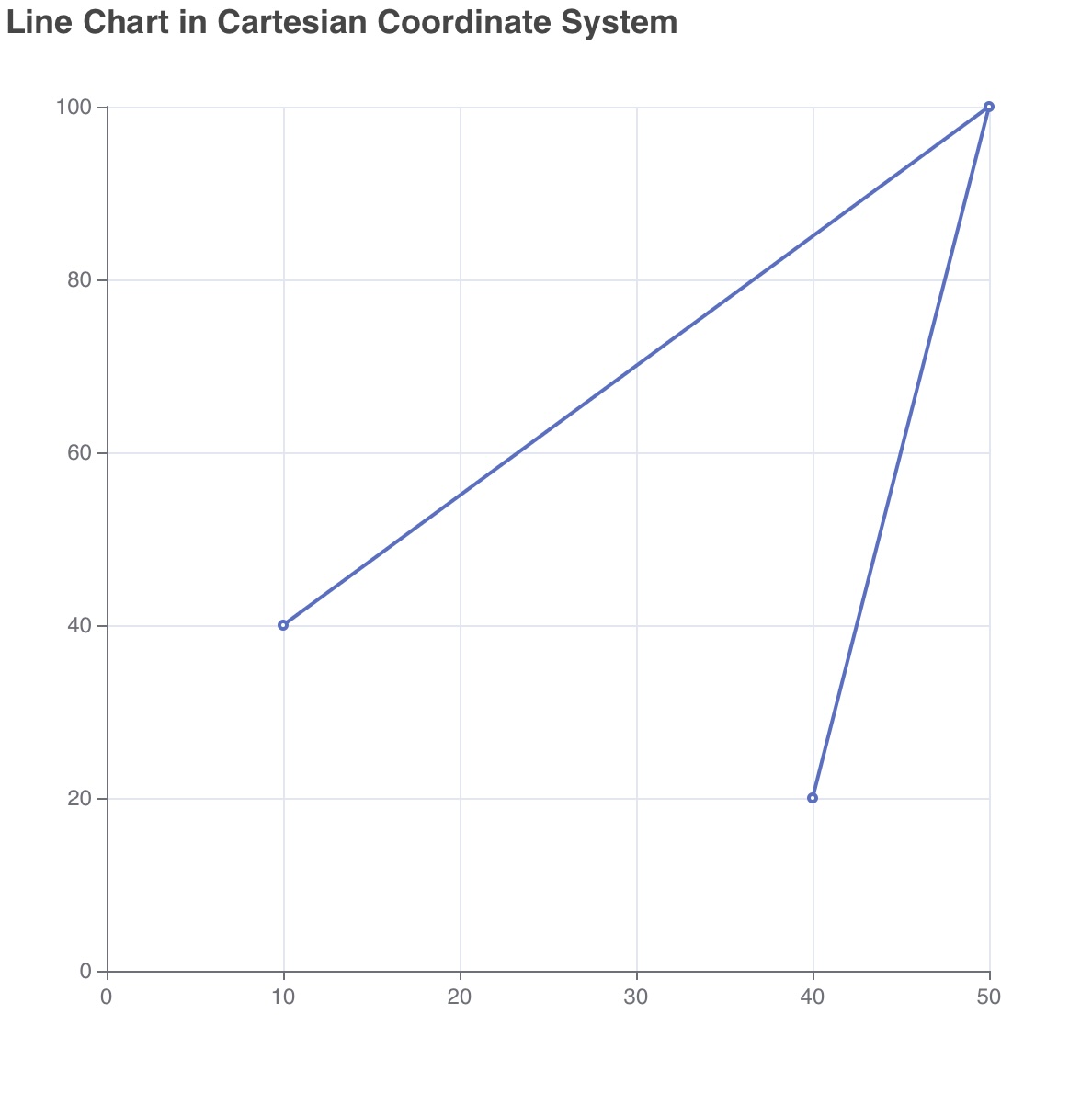

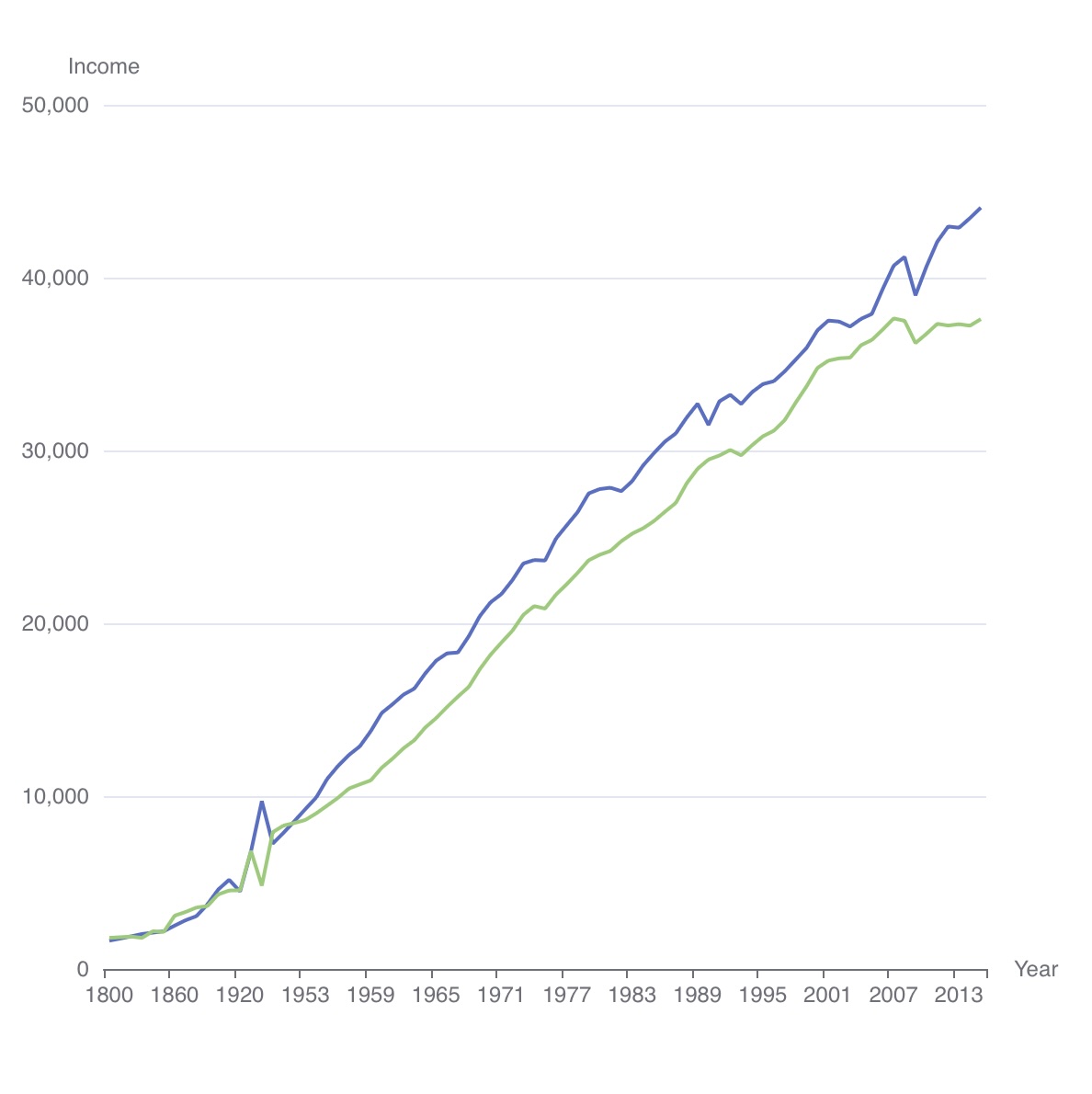

Data TransformData Transform Air PassengersAir Passengers Cartesian Coordinate SystemCartesian Coordinate System

Bar

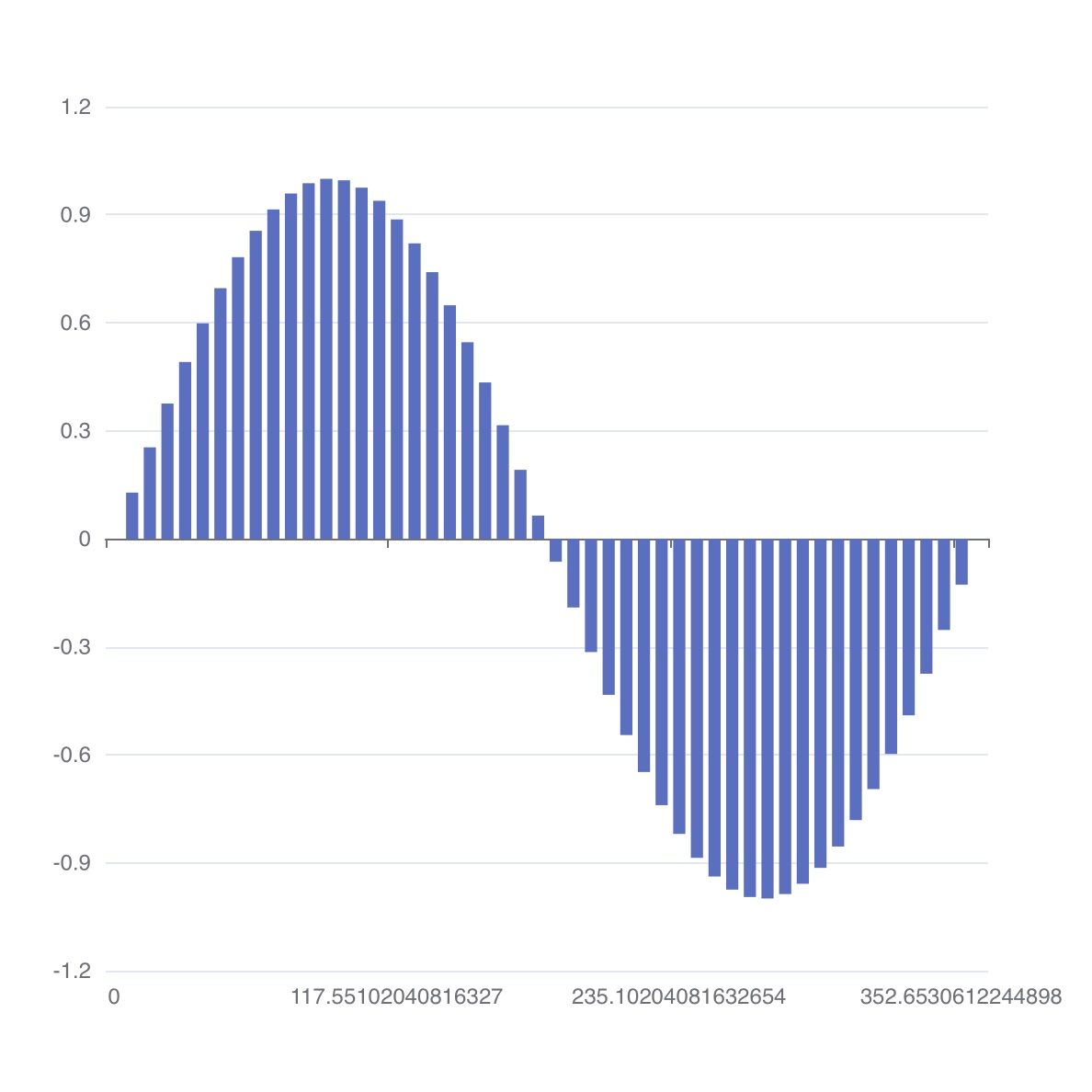

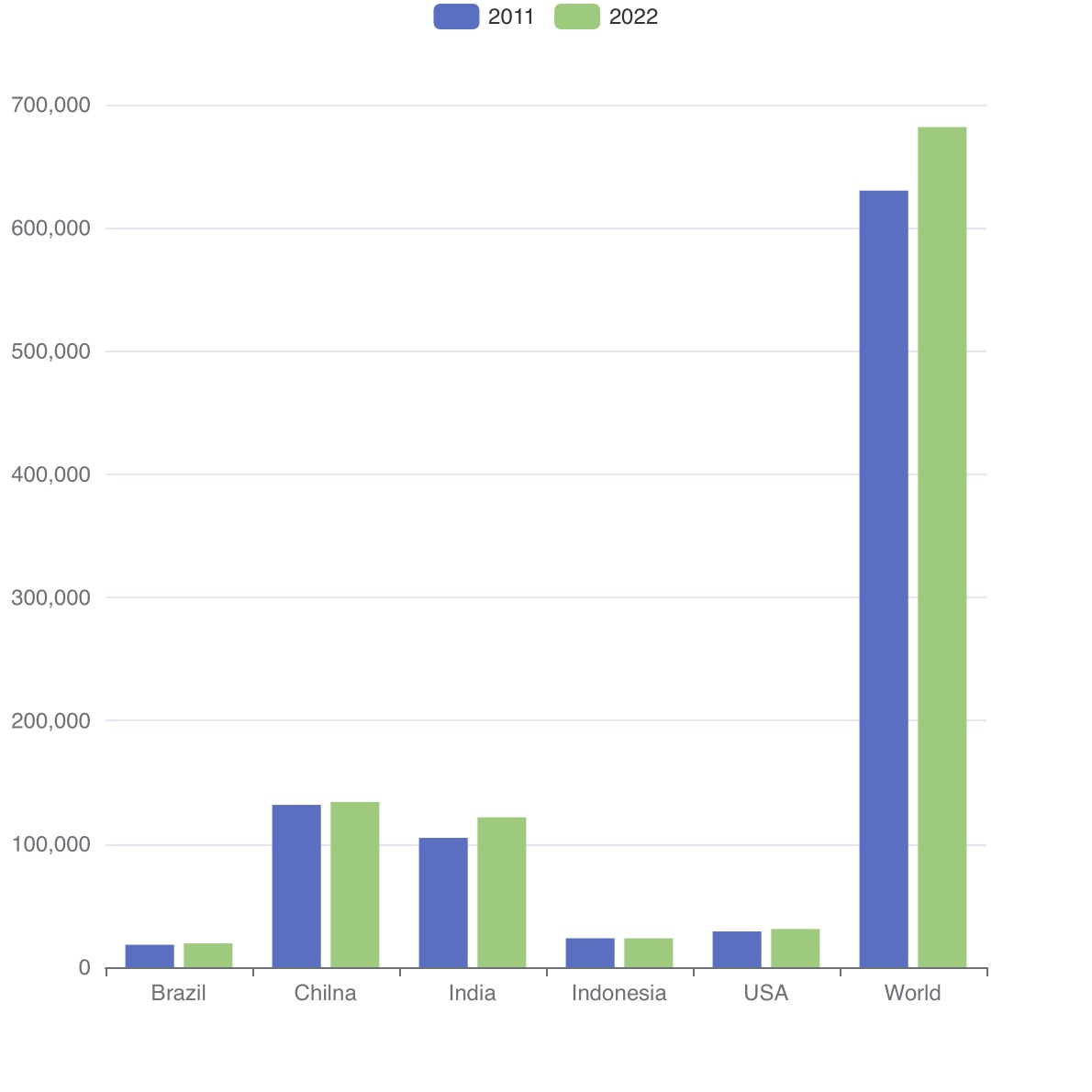

Basic Bar ChartBasic Bar Chart Category BarCategory Bar
GROUP-by-lazy

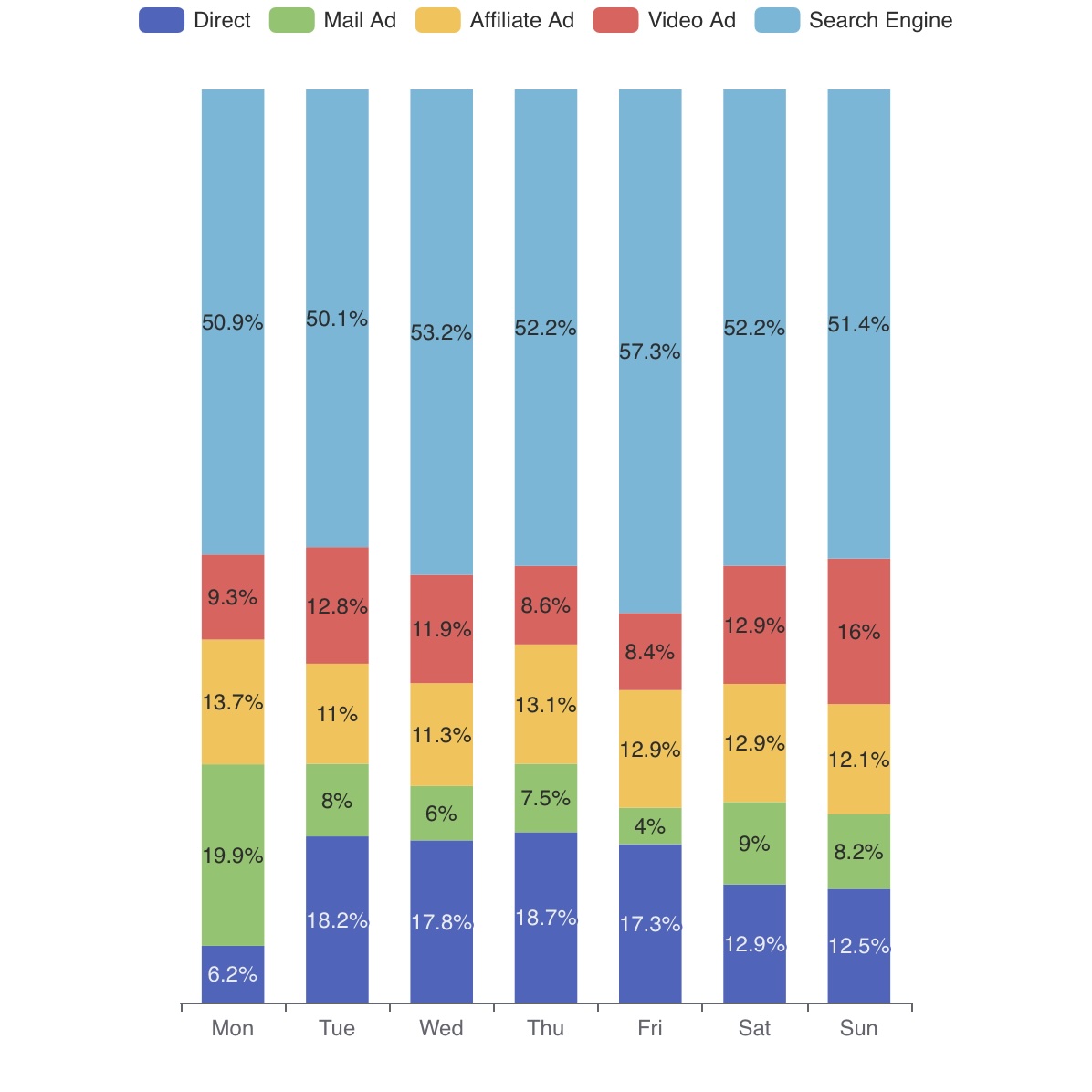

Stacked Bar NormalizationStacked Bar Normalization
percentage normalize

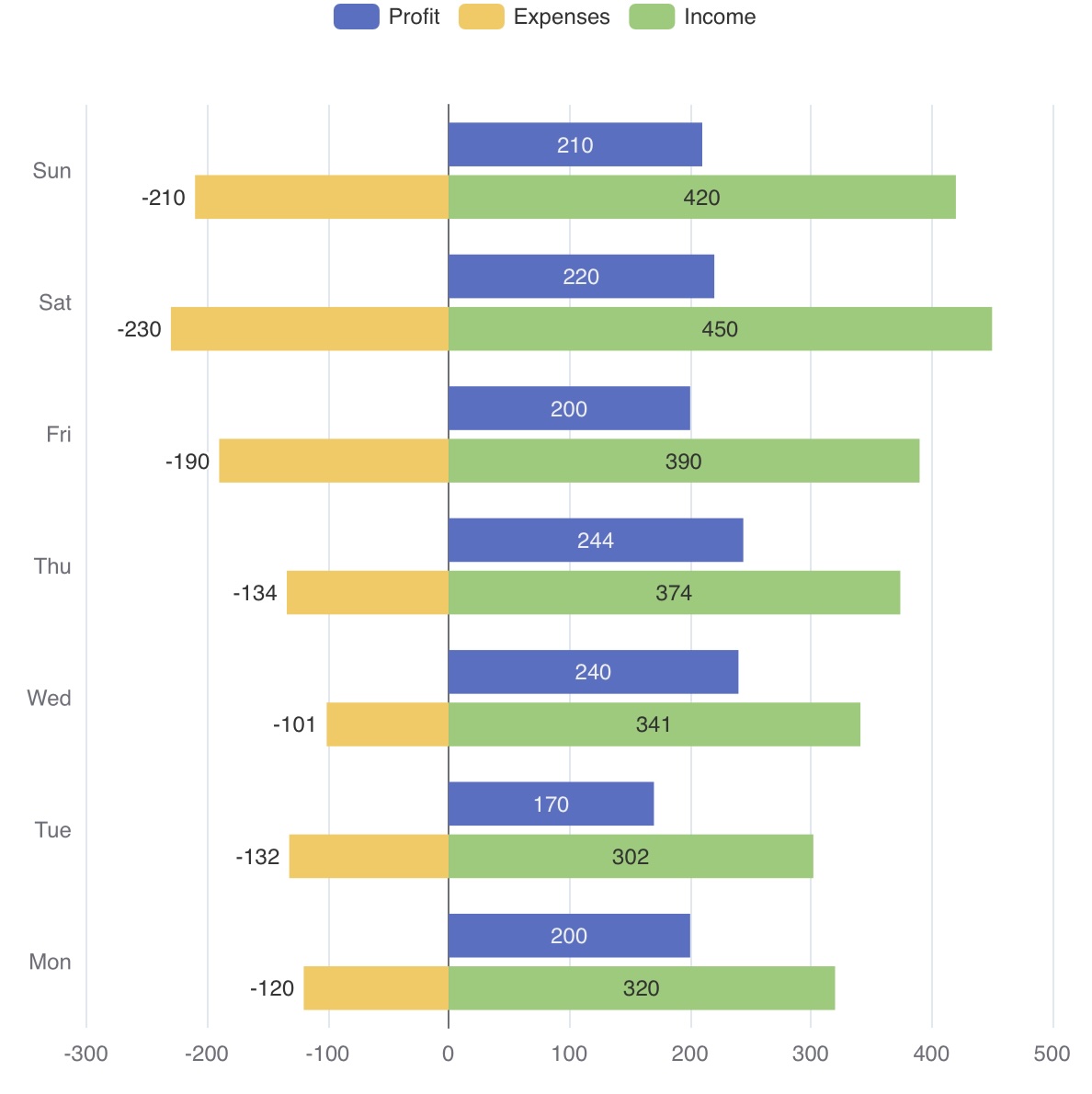

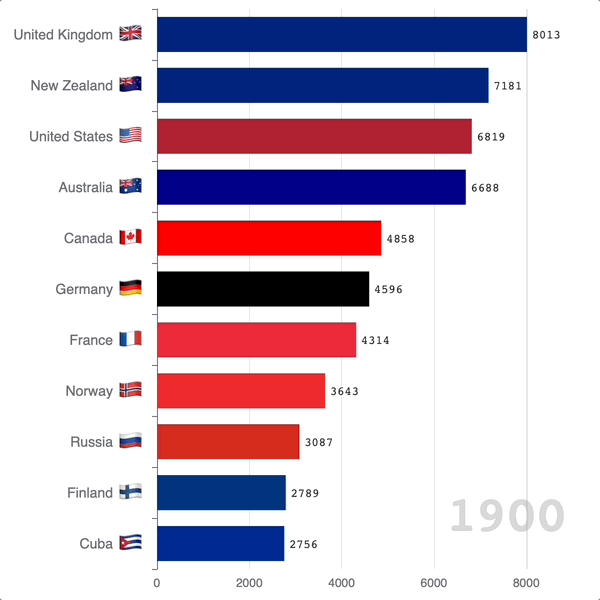

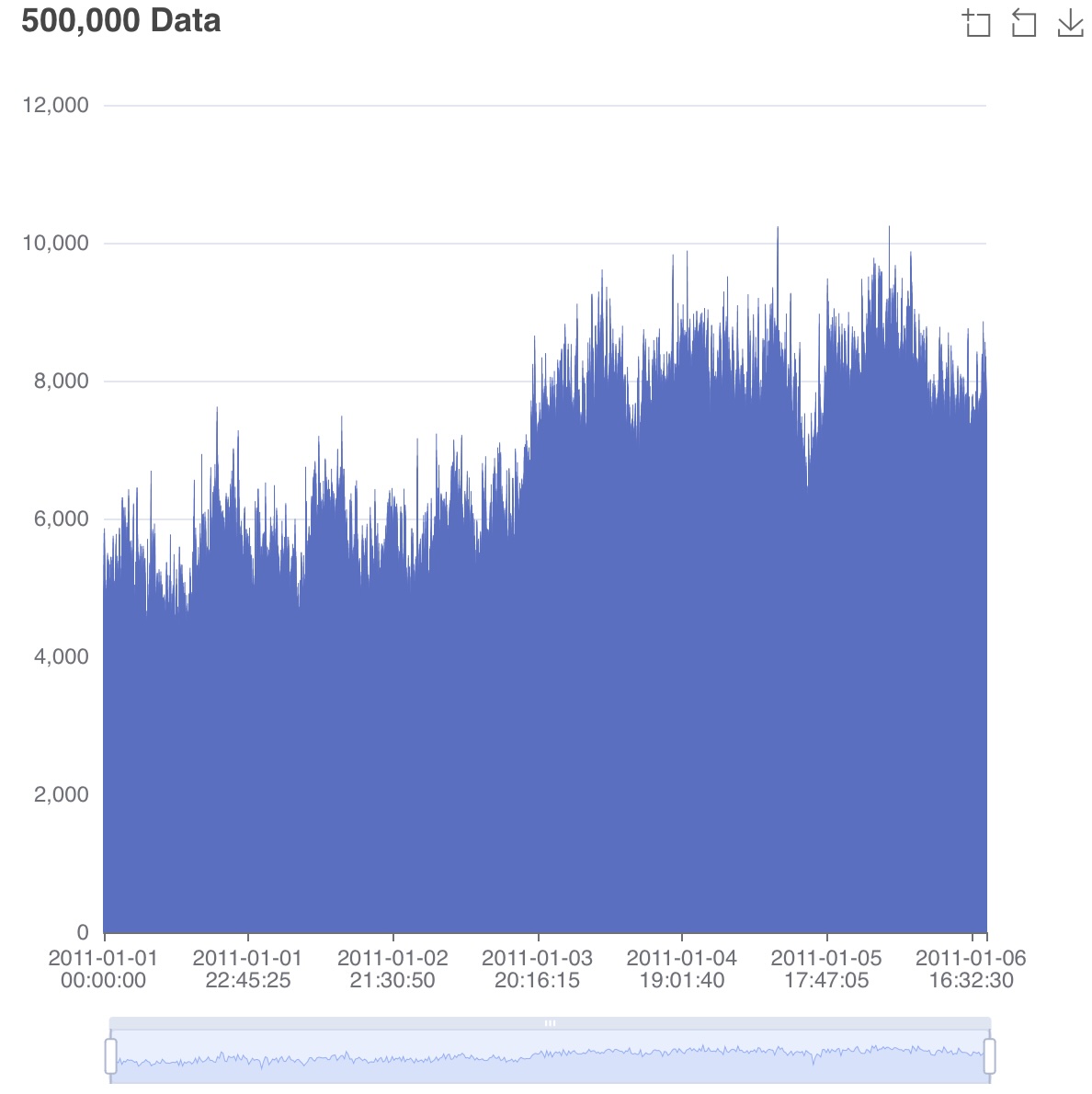

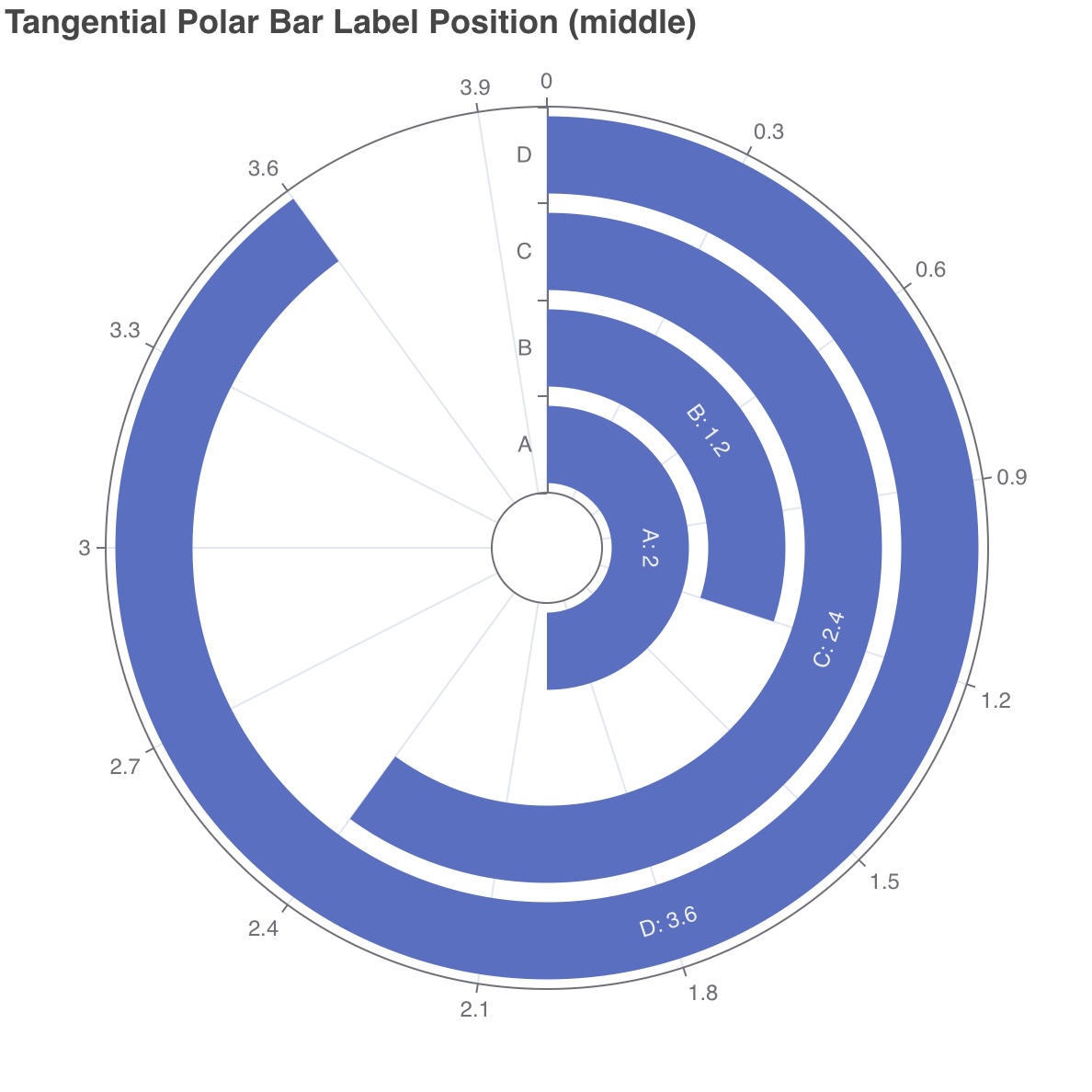

Negative ValuesNegative Values Tangential Polar BarTangential Polar Bar Large Scale Bar ChartLarge Scale Bar Chart Bar raceBar race

Pie

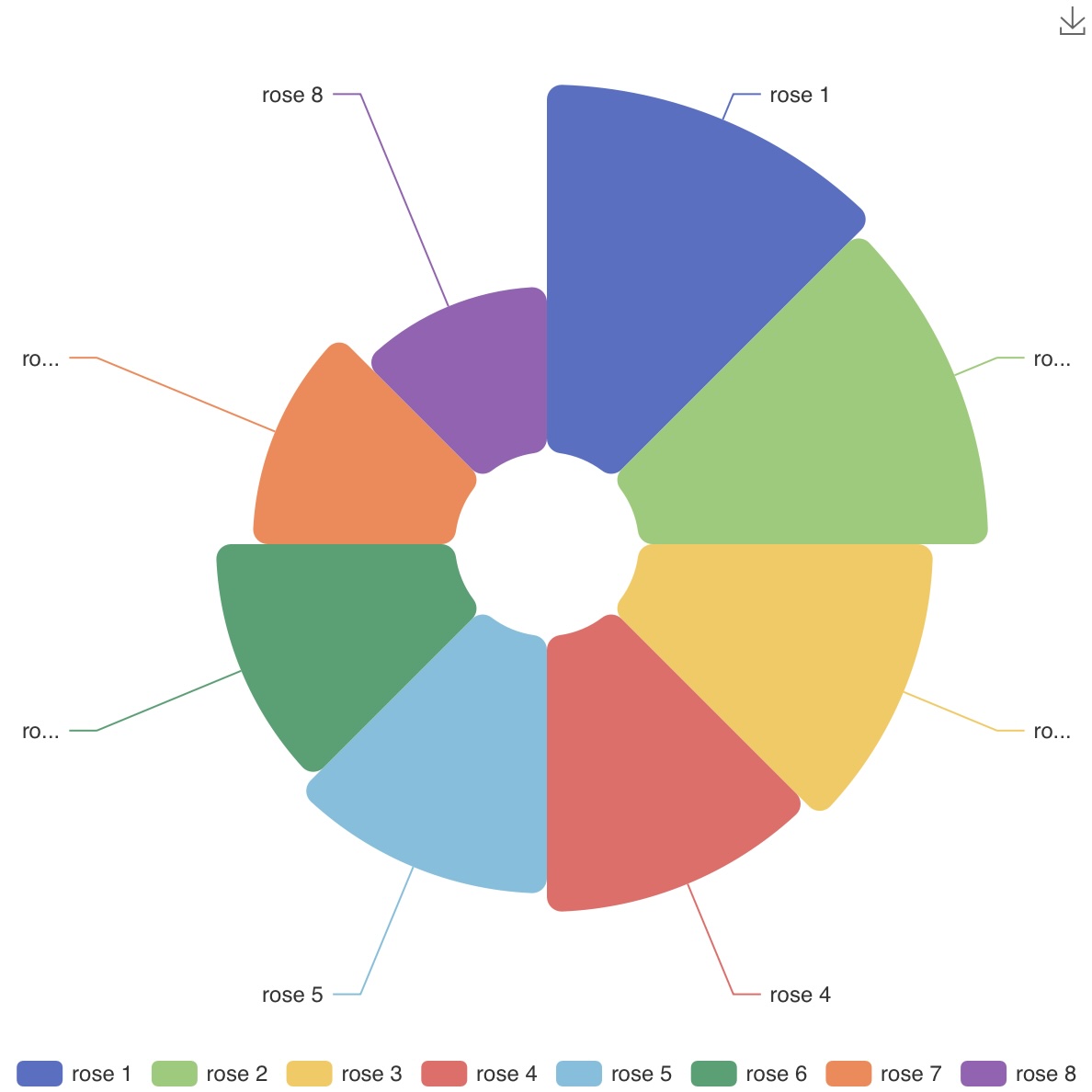

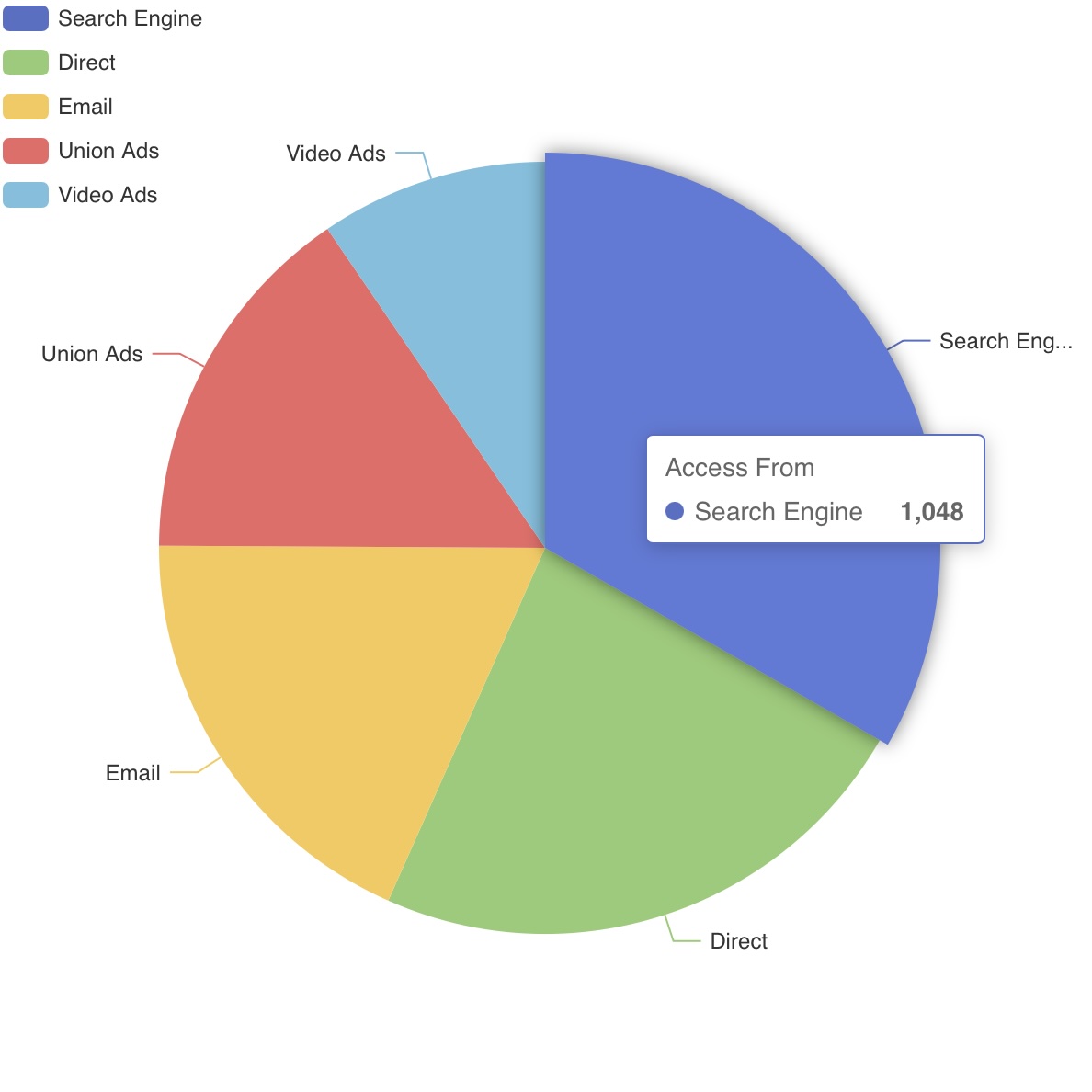

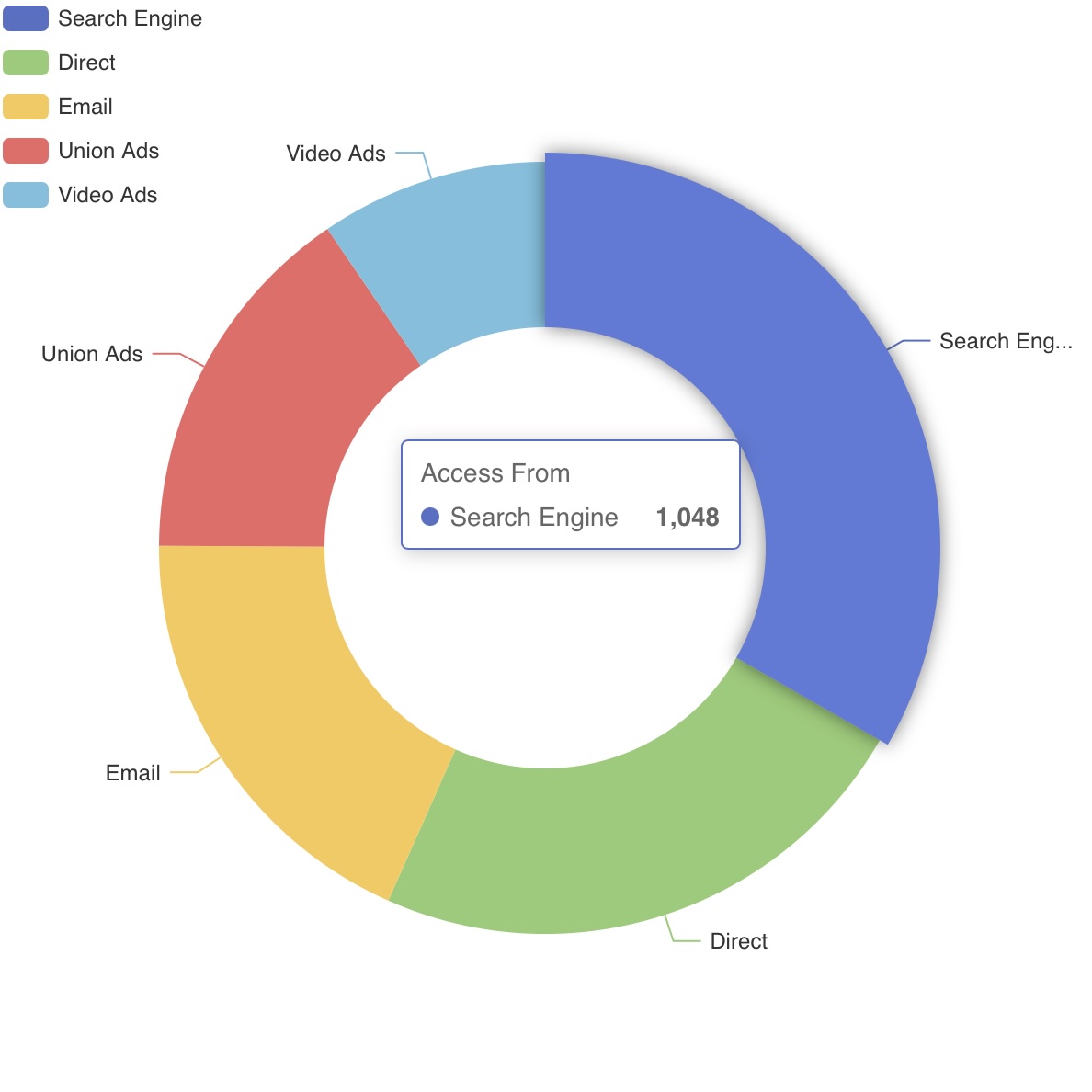

Basic PieBasic Pie DoughnutDoughnut NightingaleNightingale

Scatter

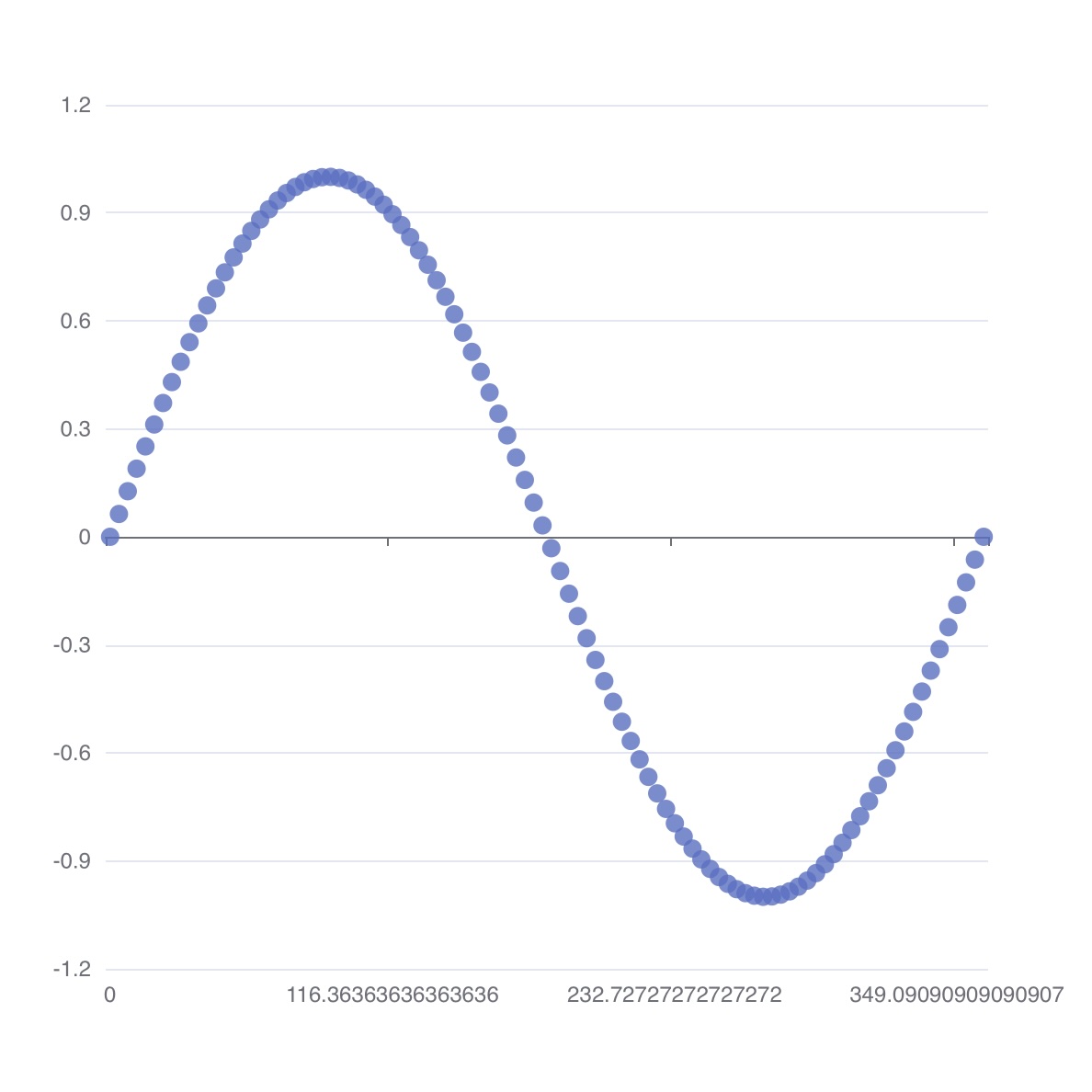

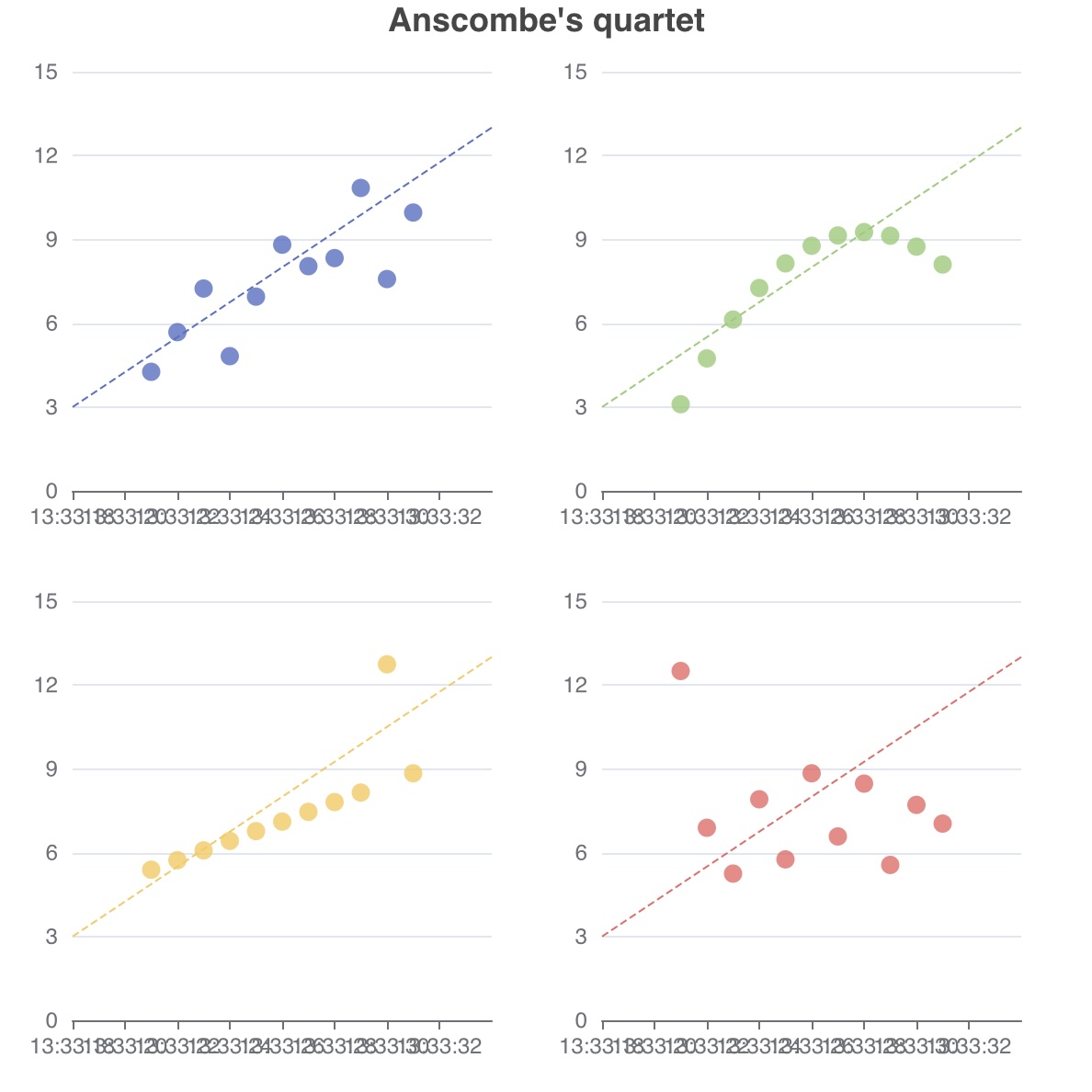

Basic Scatter ChartBasic Scatter Chart Anscombe's quartetAnscombe's quartet 1M Points1M Points
1 million points

Radar

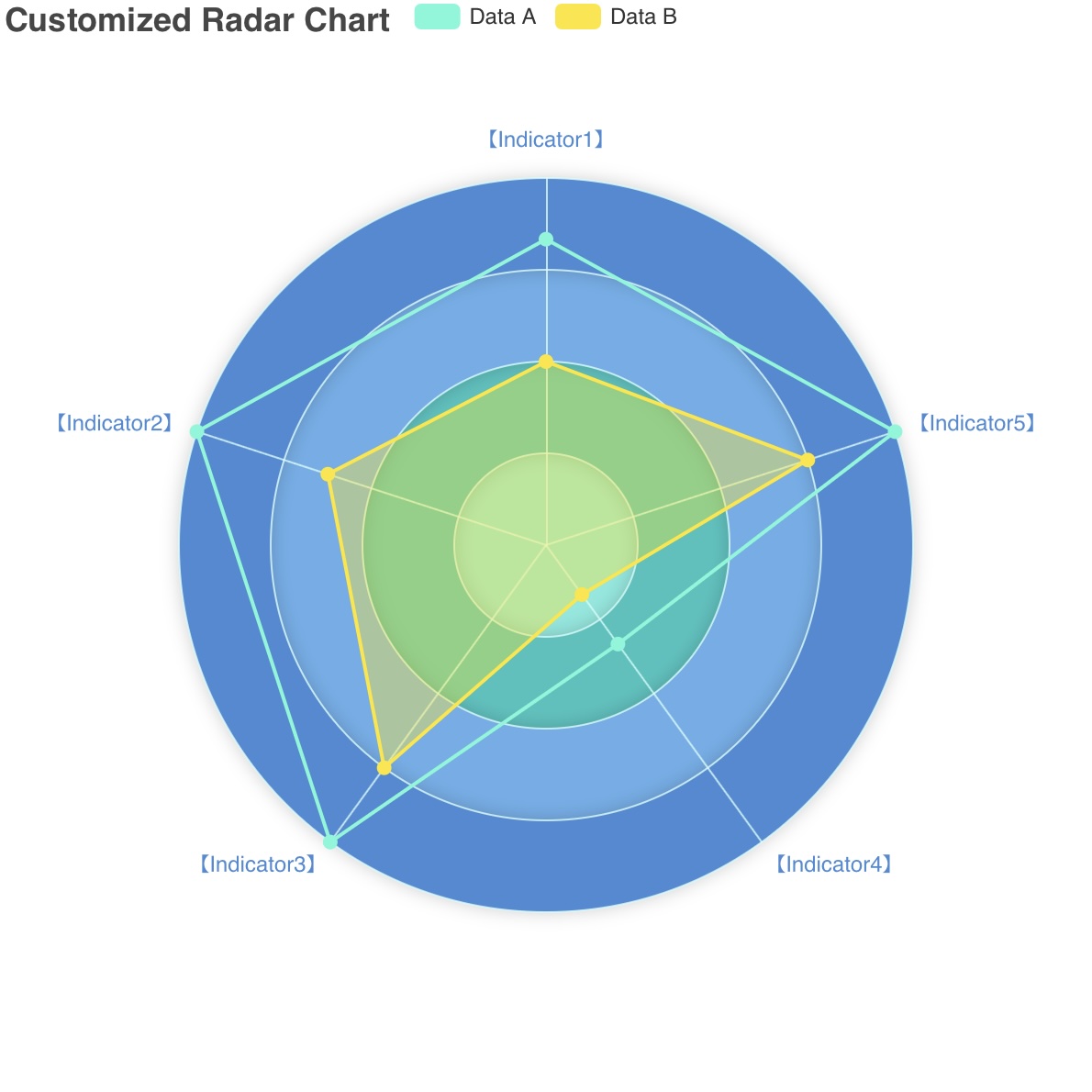

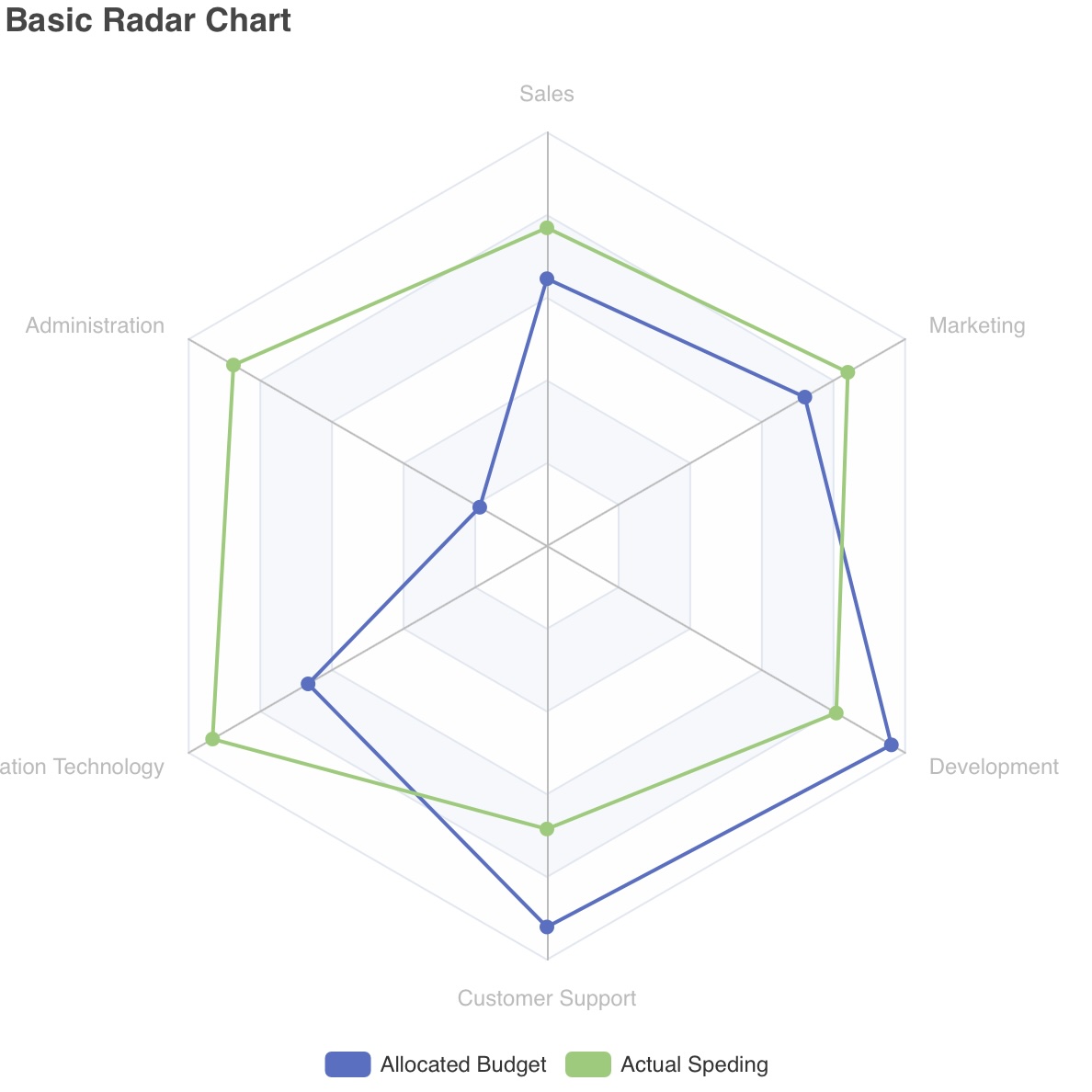

Basic RadarBasic Radar Custom RadarCustom Radar

Gauge

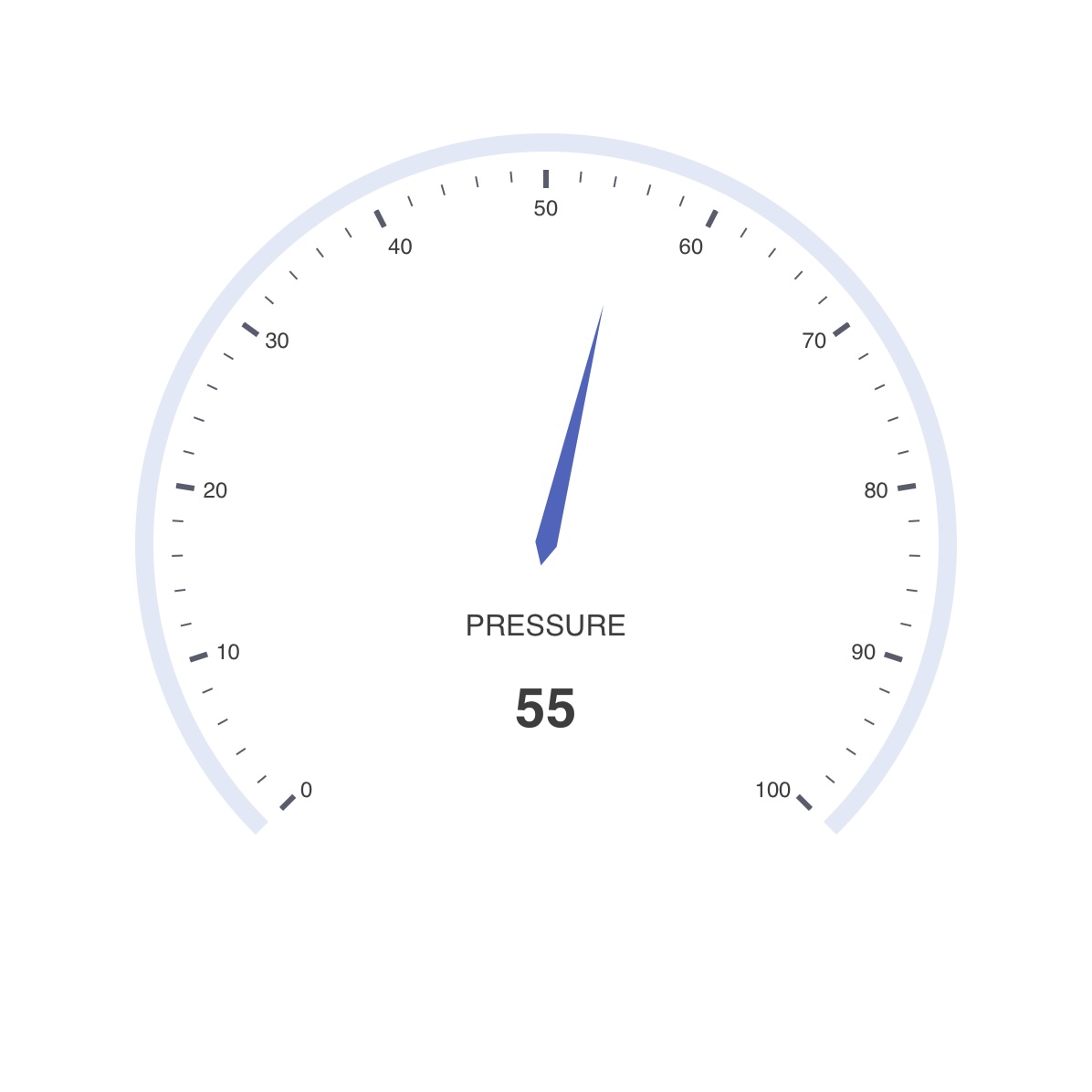

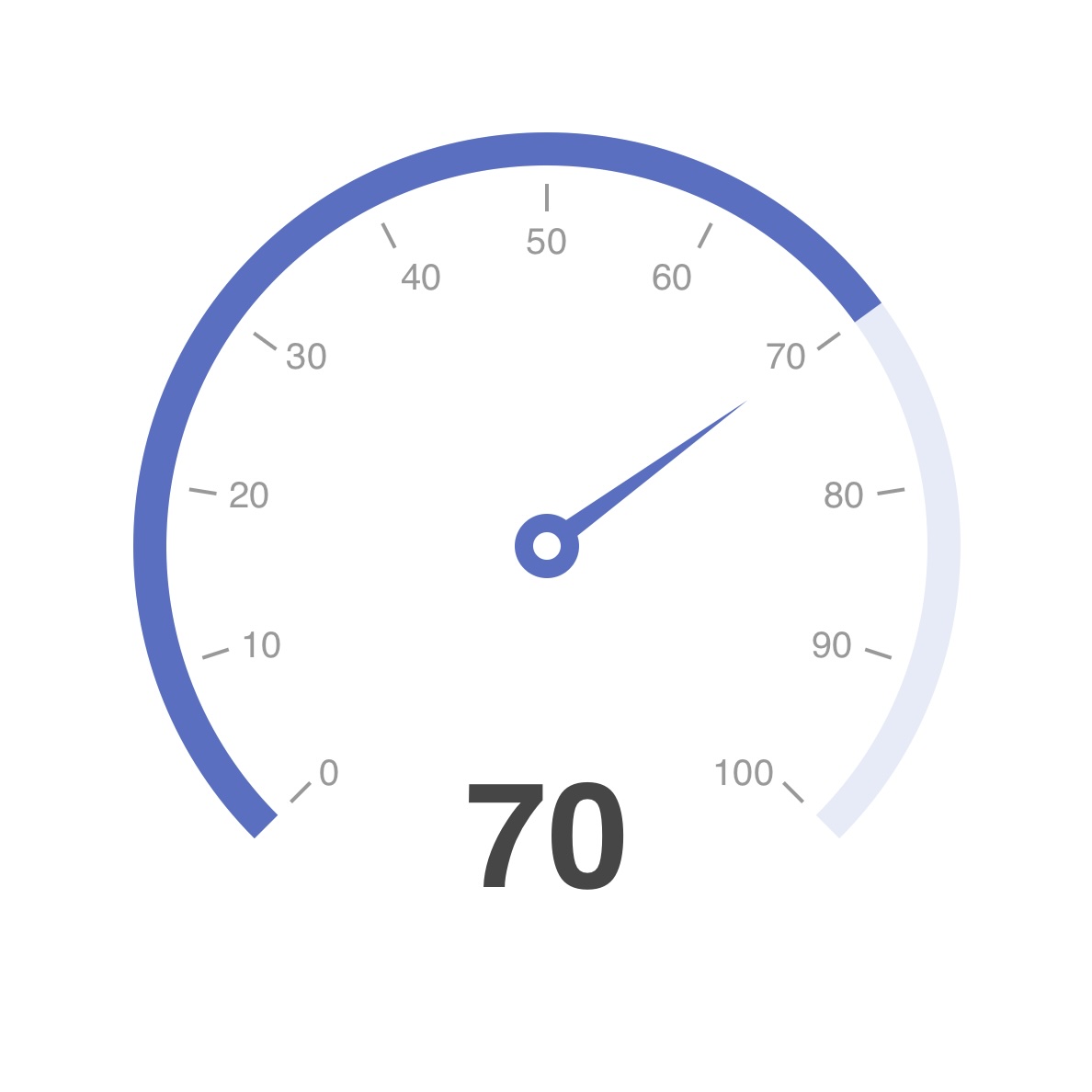

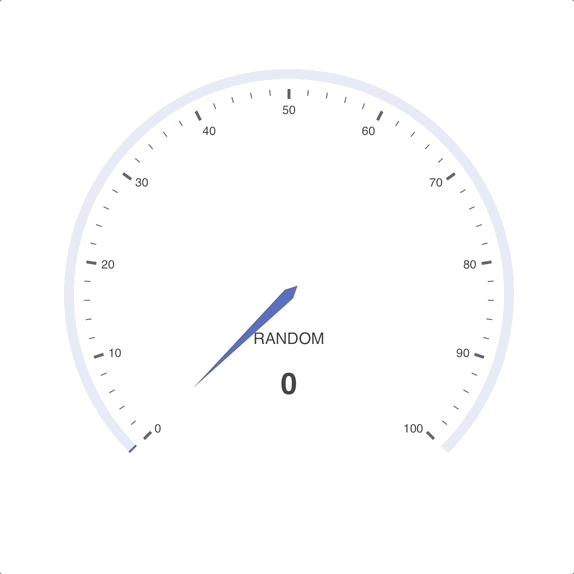

Basic GaugeBasic Gauge Speed GaugeSpeed Gauge Update GaugeUpdate Gauge

Candlestick

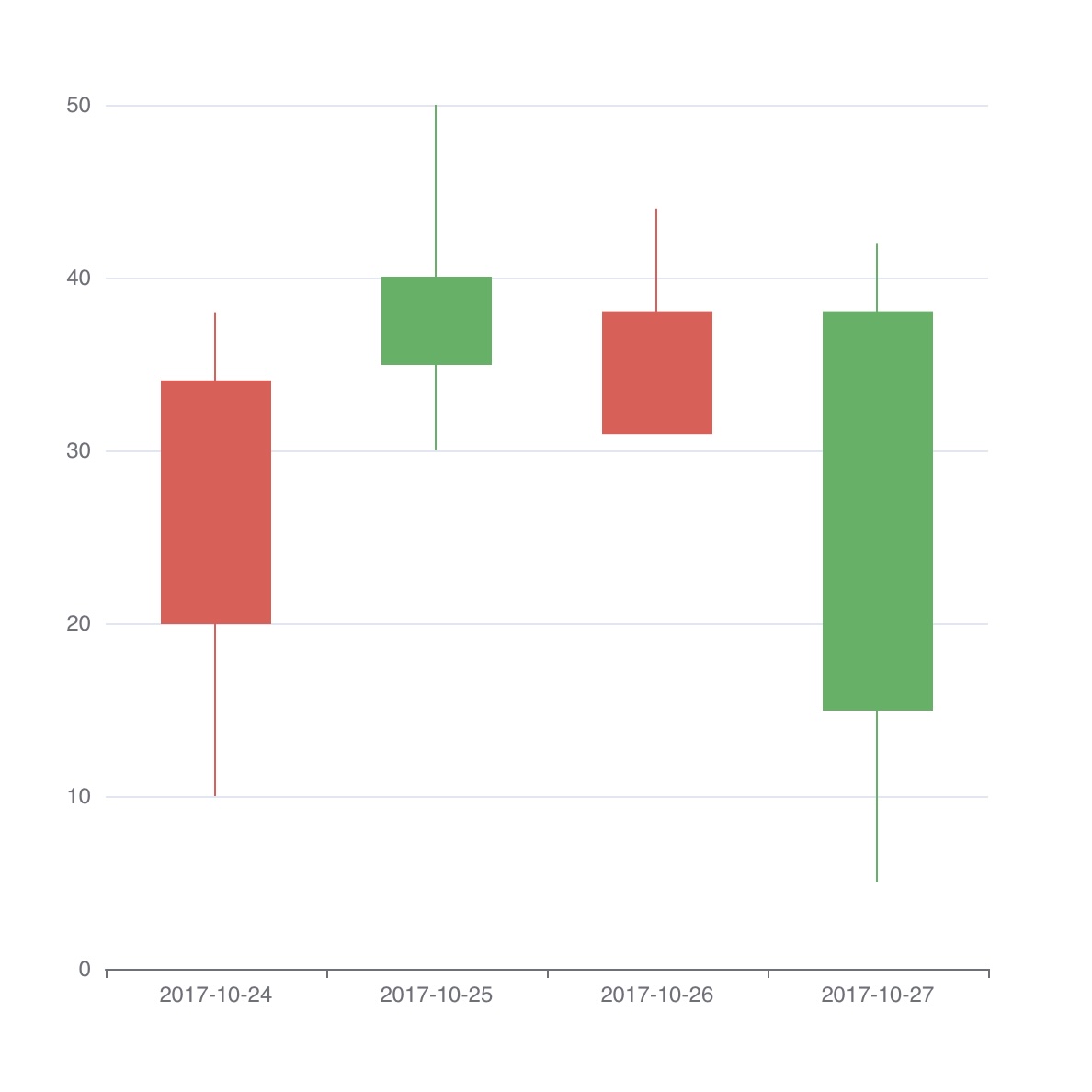

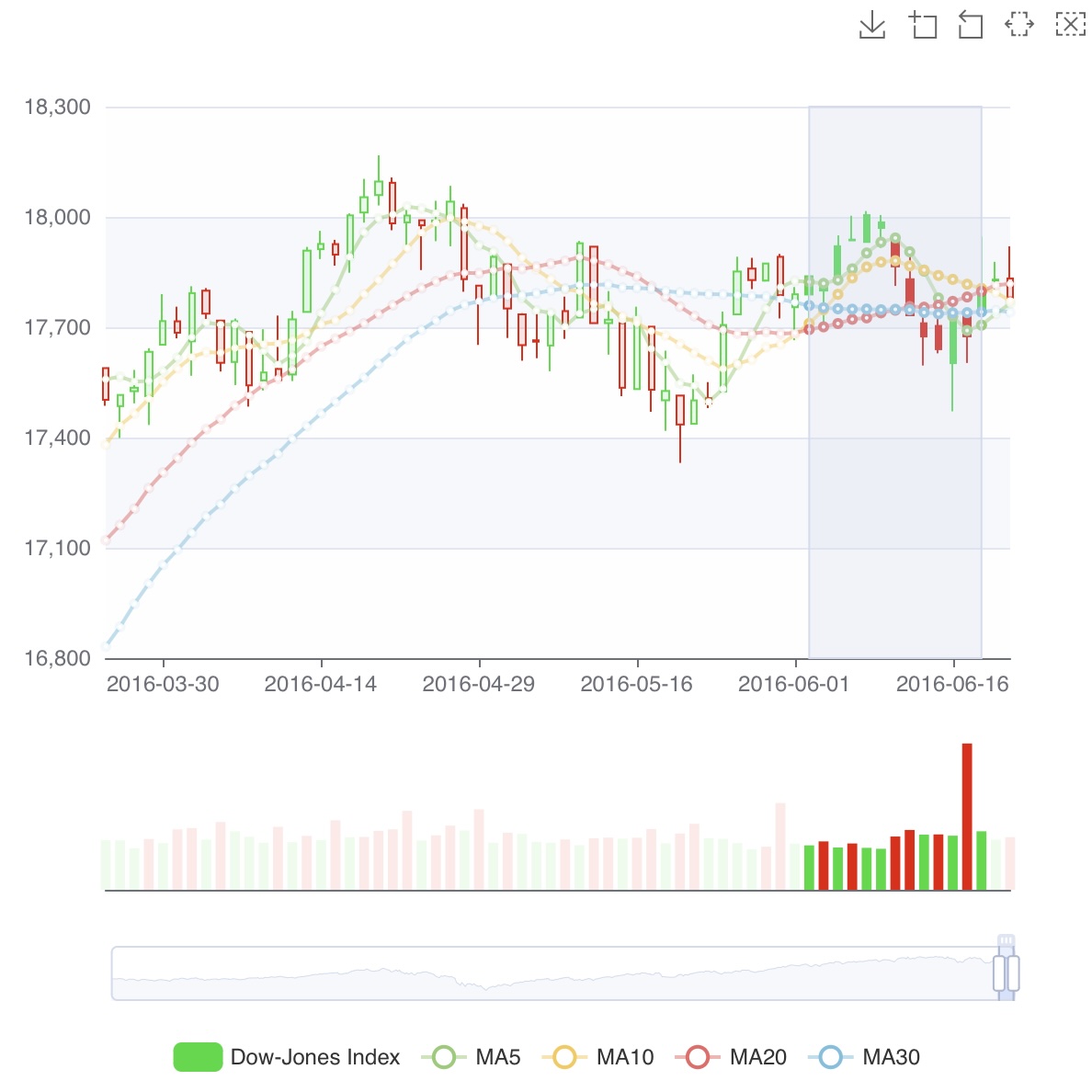

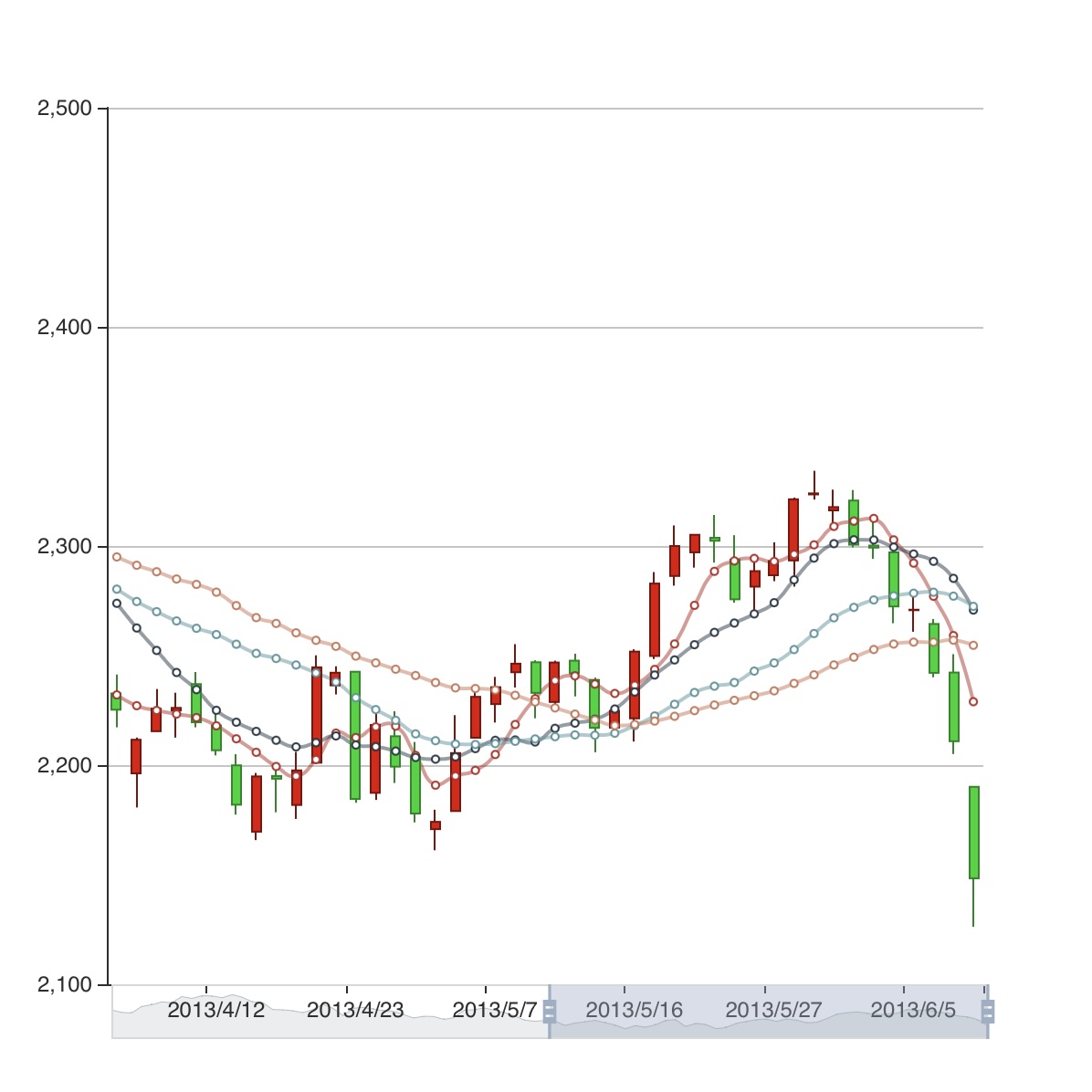

Basic CandlestickBasic Candlestick Stock IndexStock Index Dow-Jones IndexDow-Jones Index

Boxplot

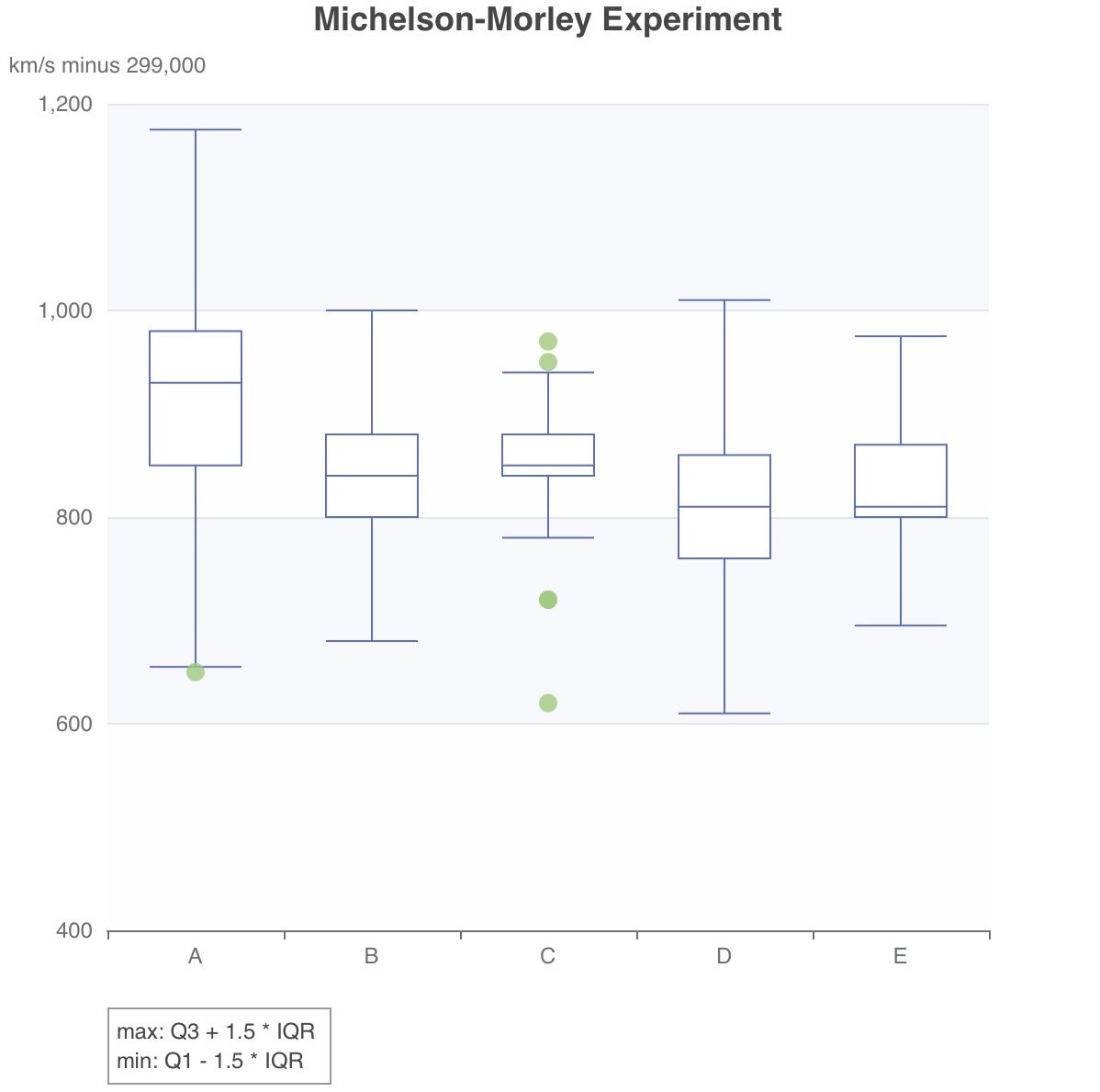

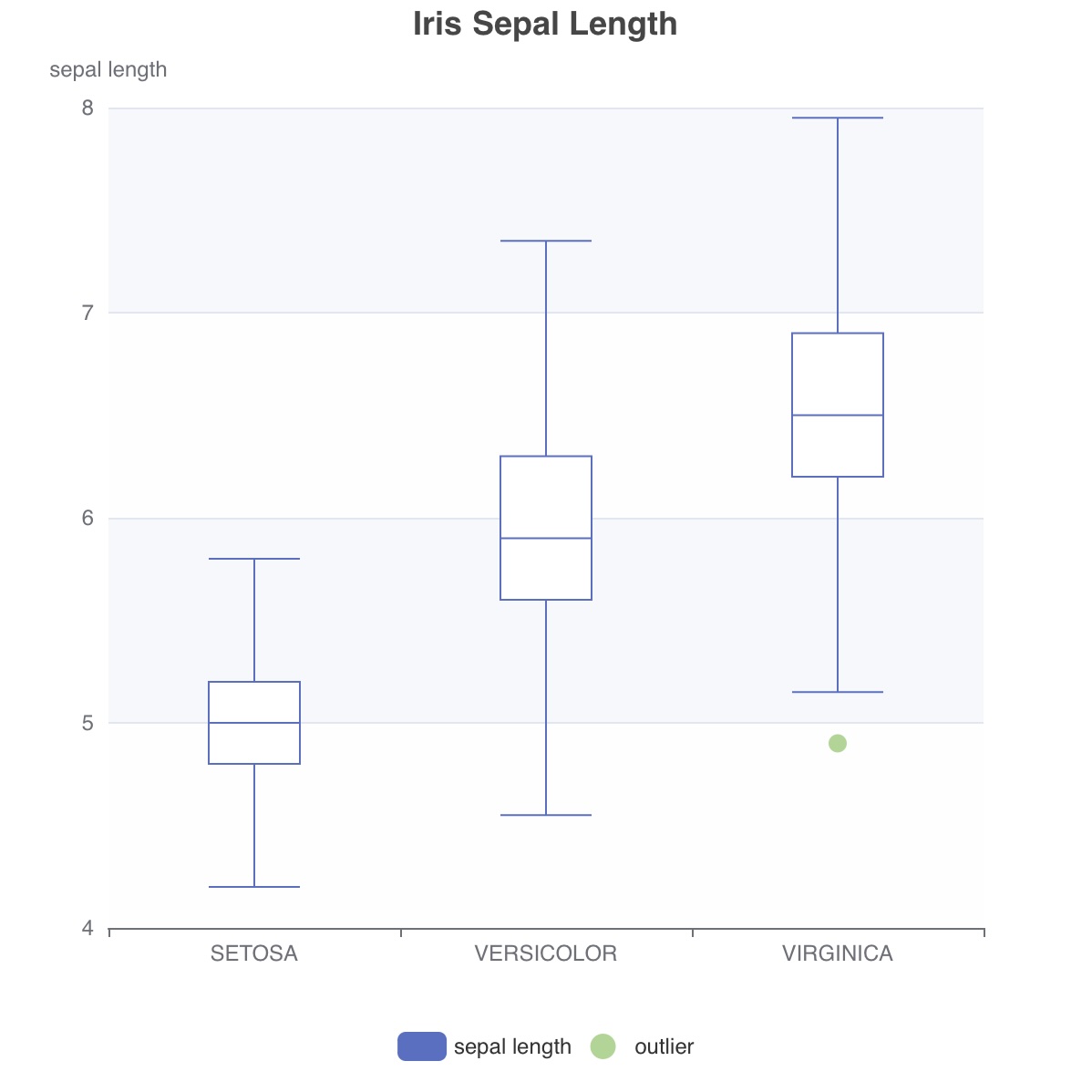

Michelson-Morley ExperimentMichelson-Morley Experiment Iris Sepal LengthIris Sepal Length

GeoJSON

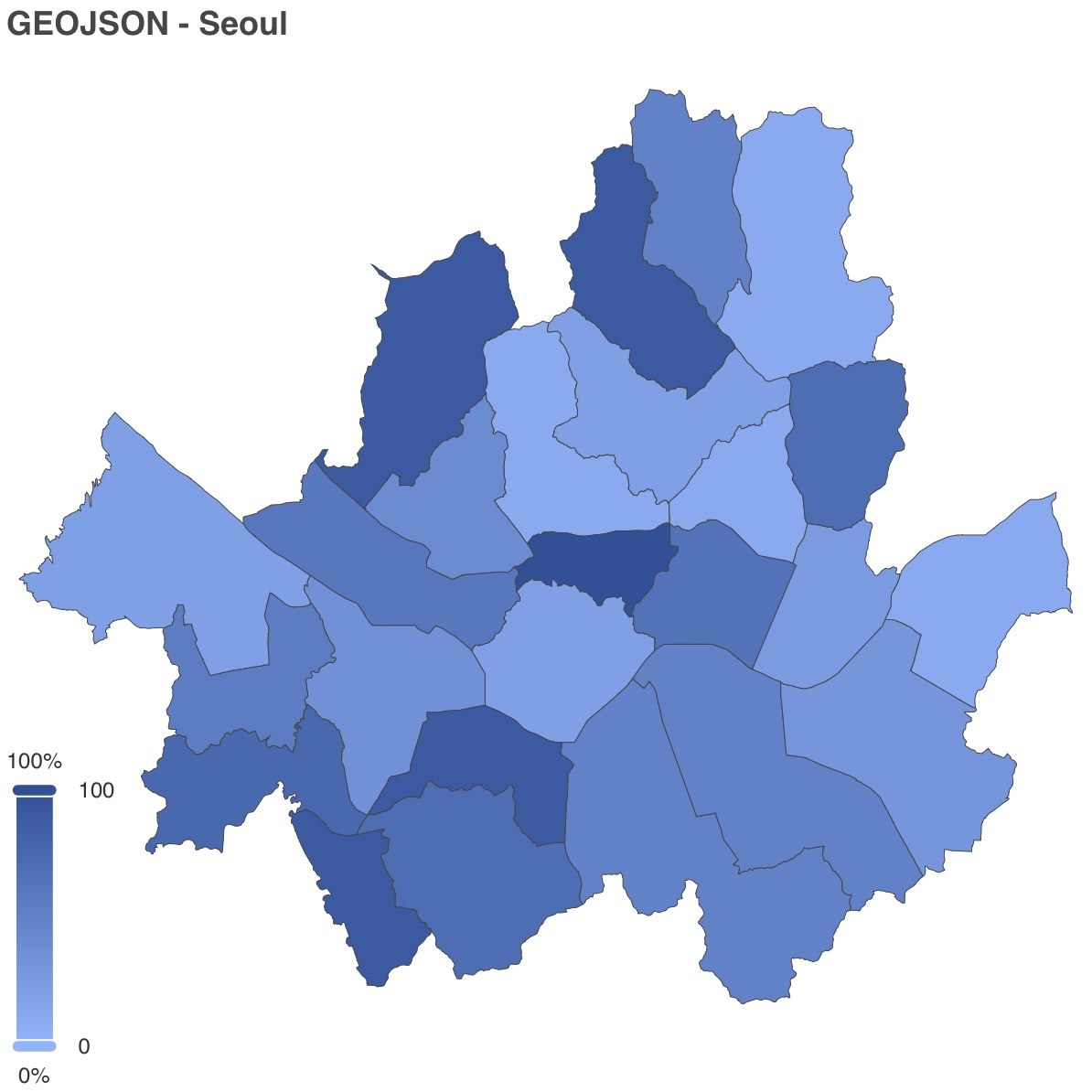

GEOJSON - SeoulGEOJSON - Seoul

Heatmap

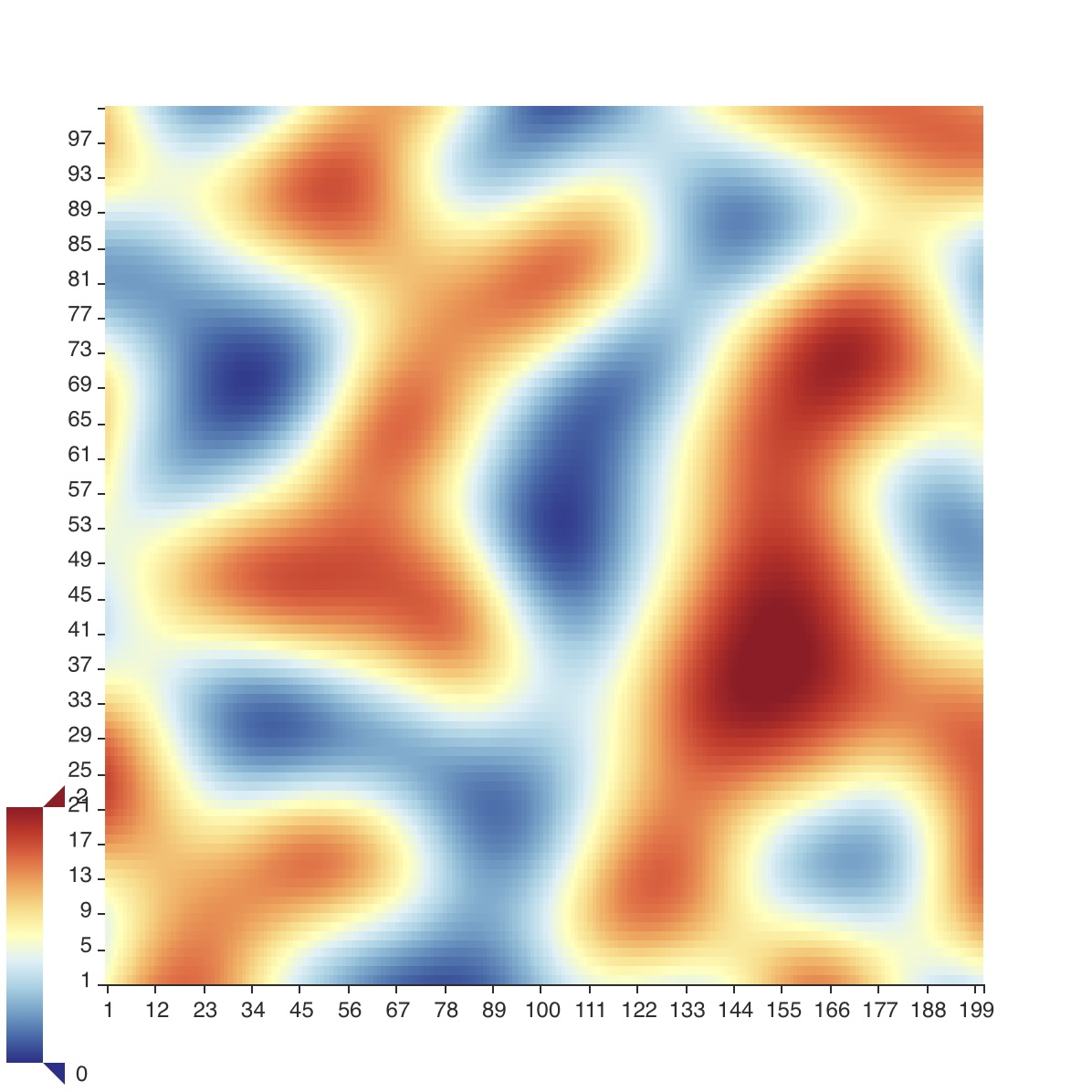

Basic HeatmapBasic Heatmap
20K data

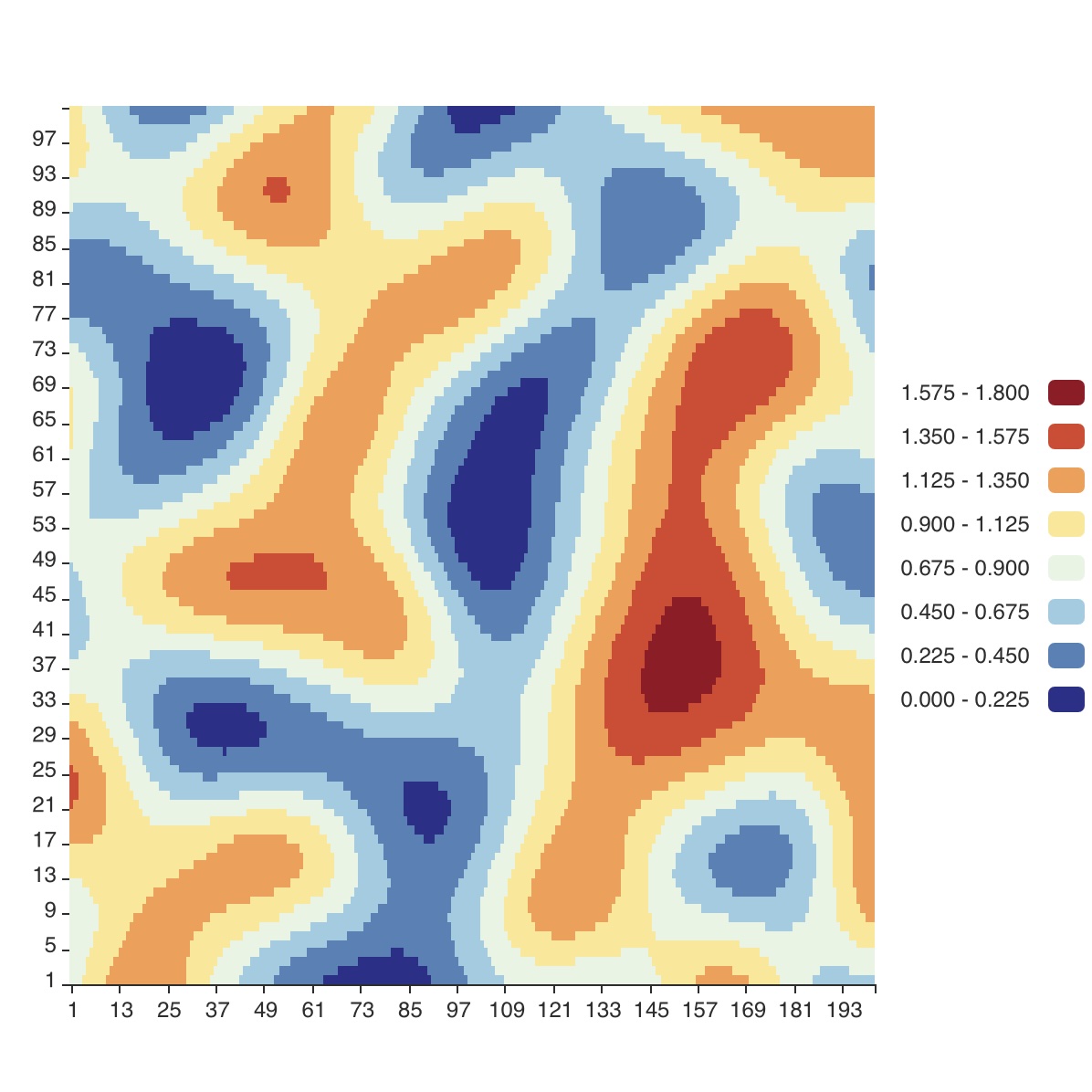

Discrete Mapping of ColorsDiscrete Mapping of Colors
20K data

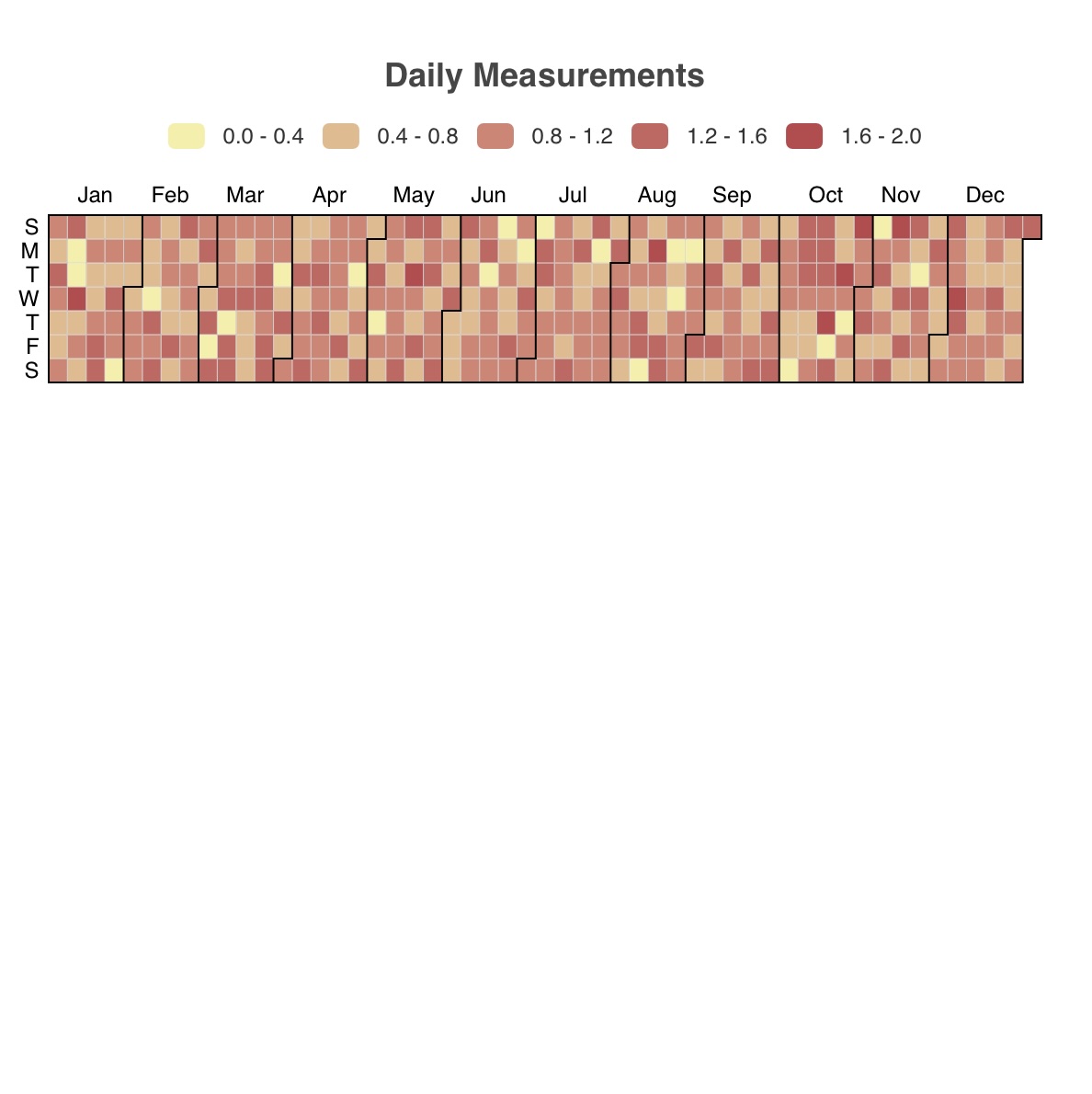

Calendar HeatmapCalendar Heatmap
Year 2023

Liquidfill

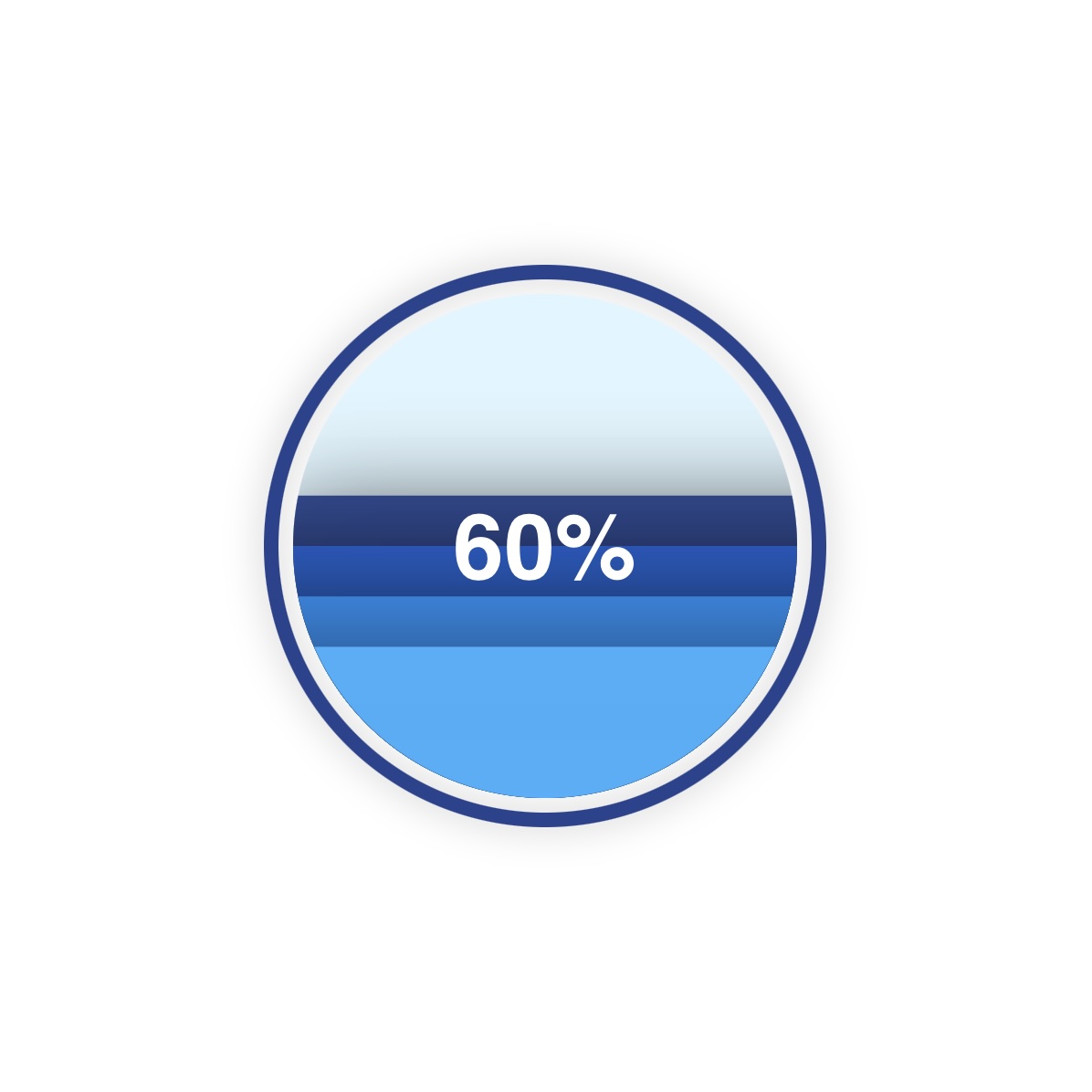

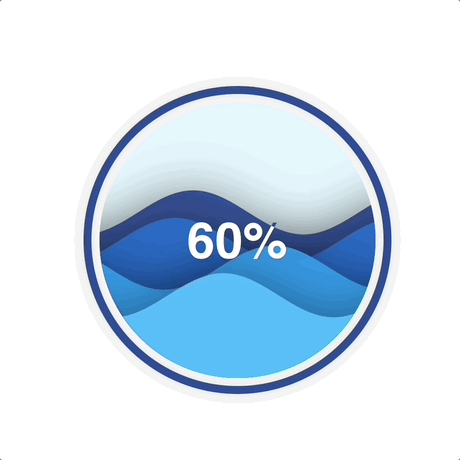

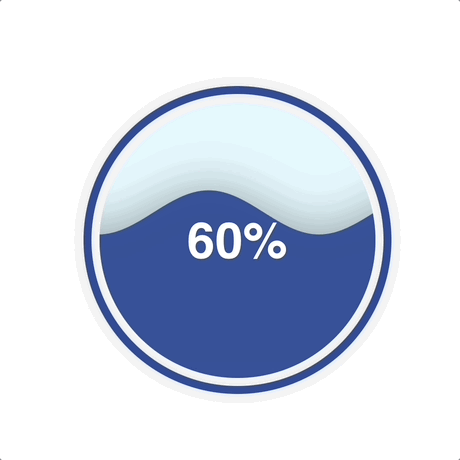

Liquid FillLiquid Fill Multiple WavesMultiple Waves Still WavesStill Waves

3D Globe

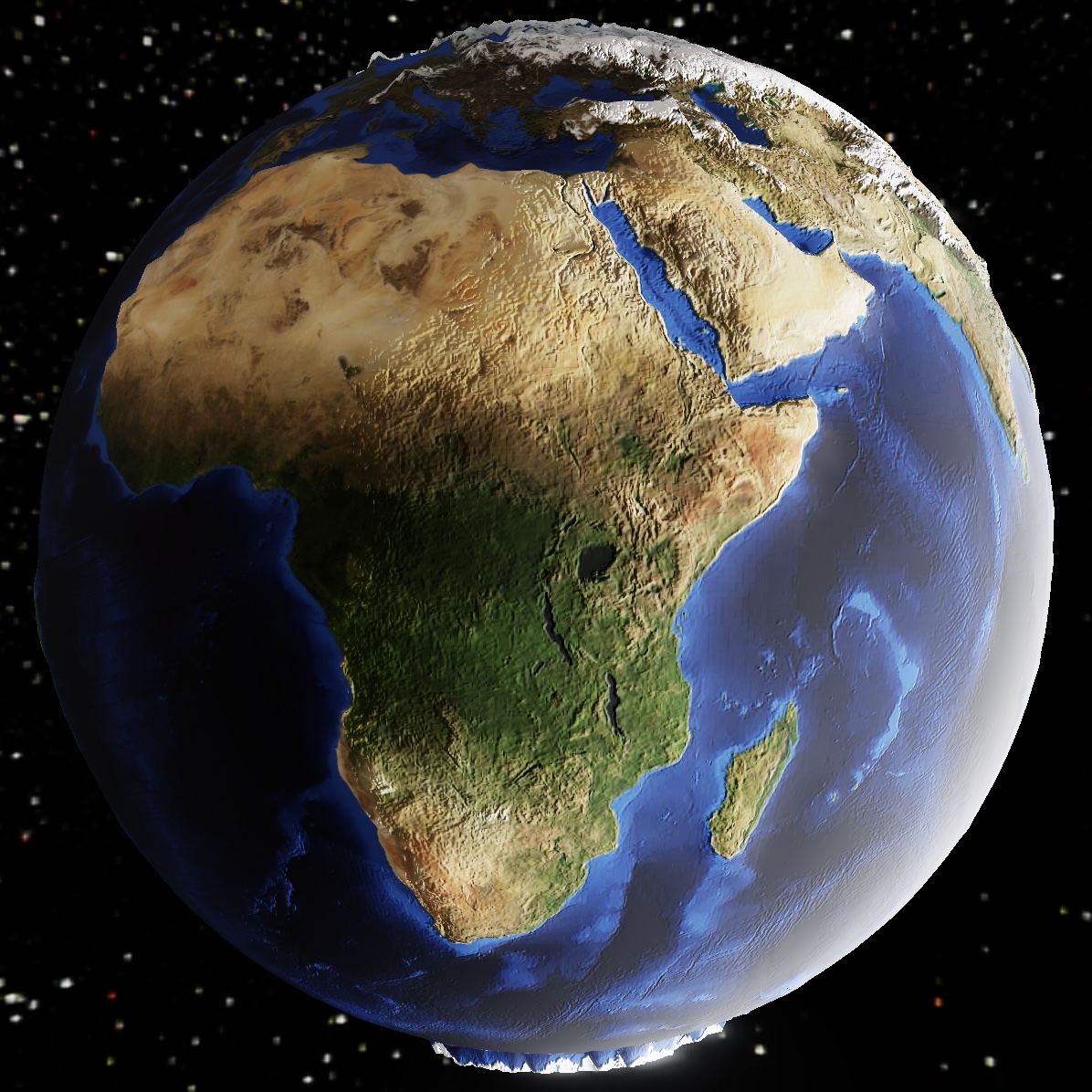

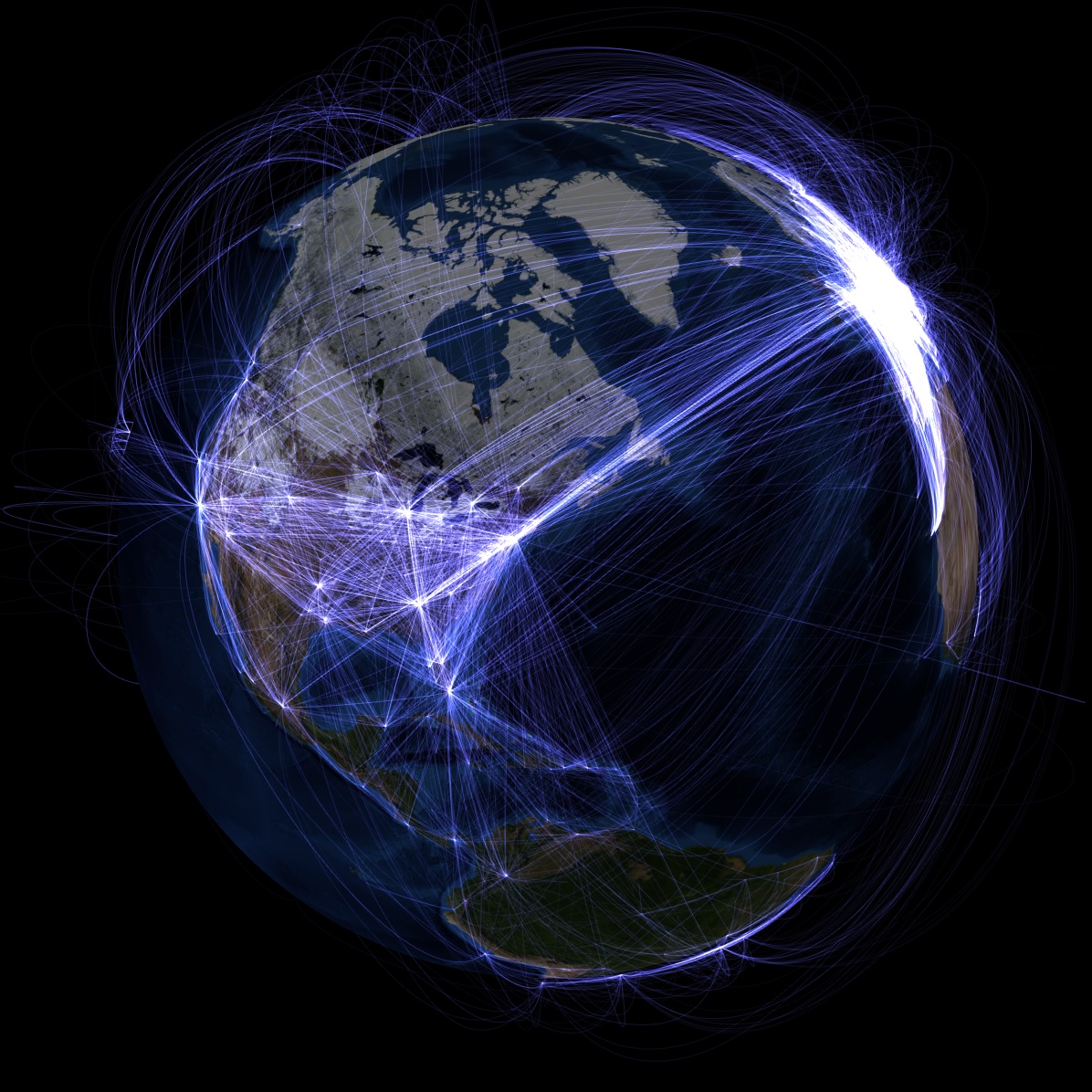

Hello WorldHello World Airline on GlobeAirline on Globe

3D Bar

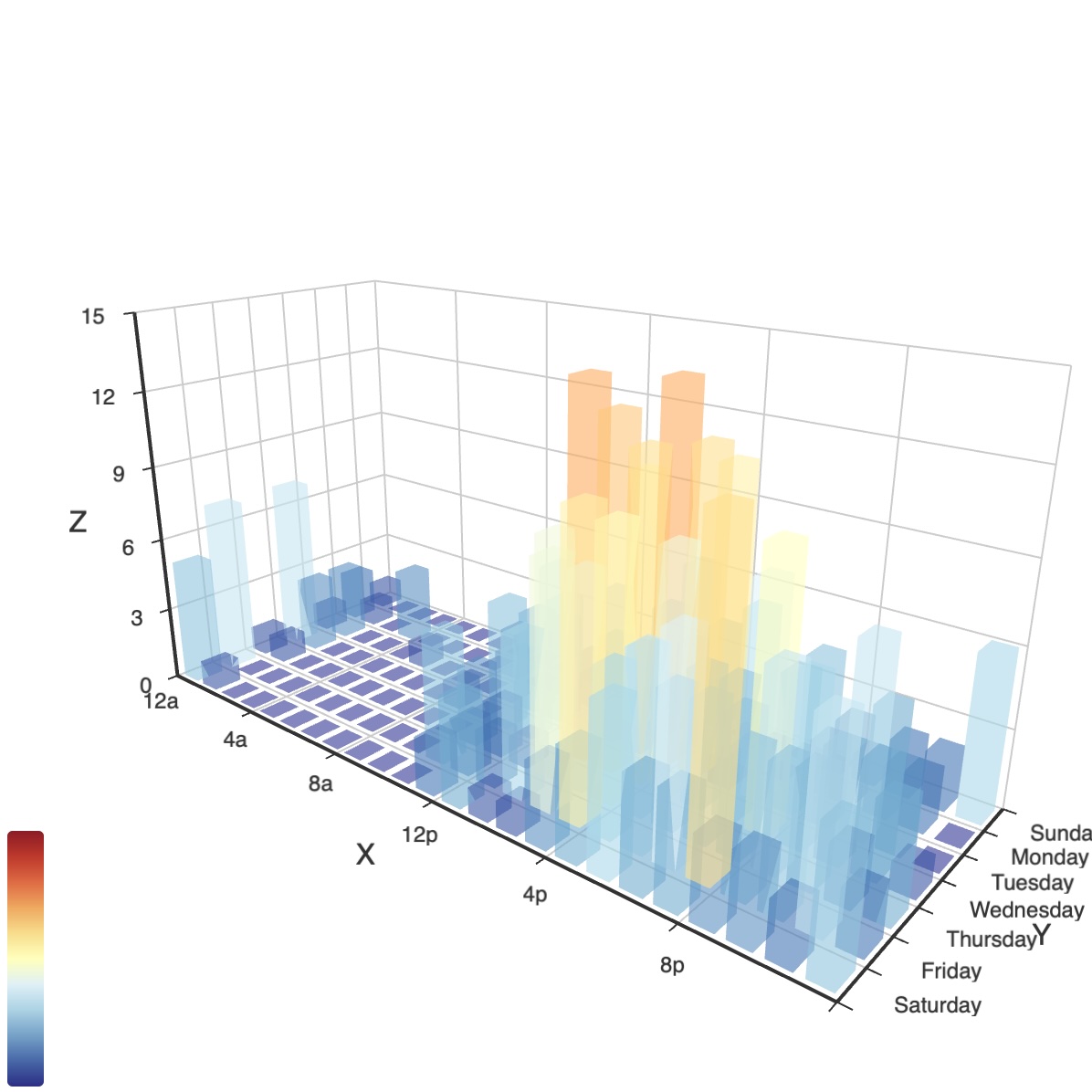

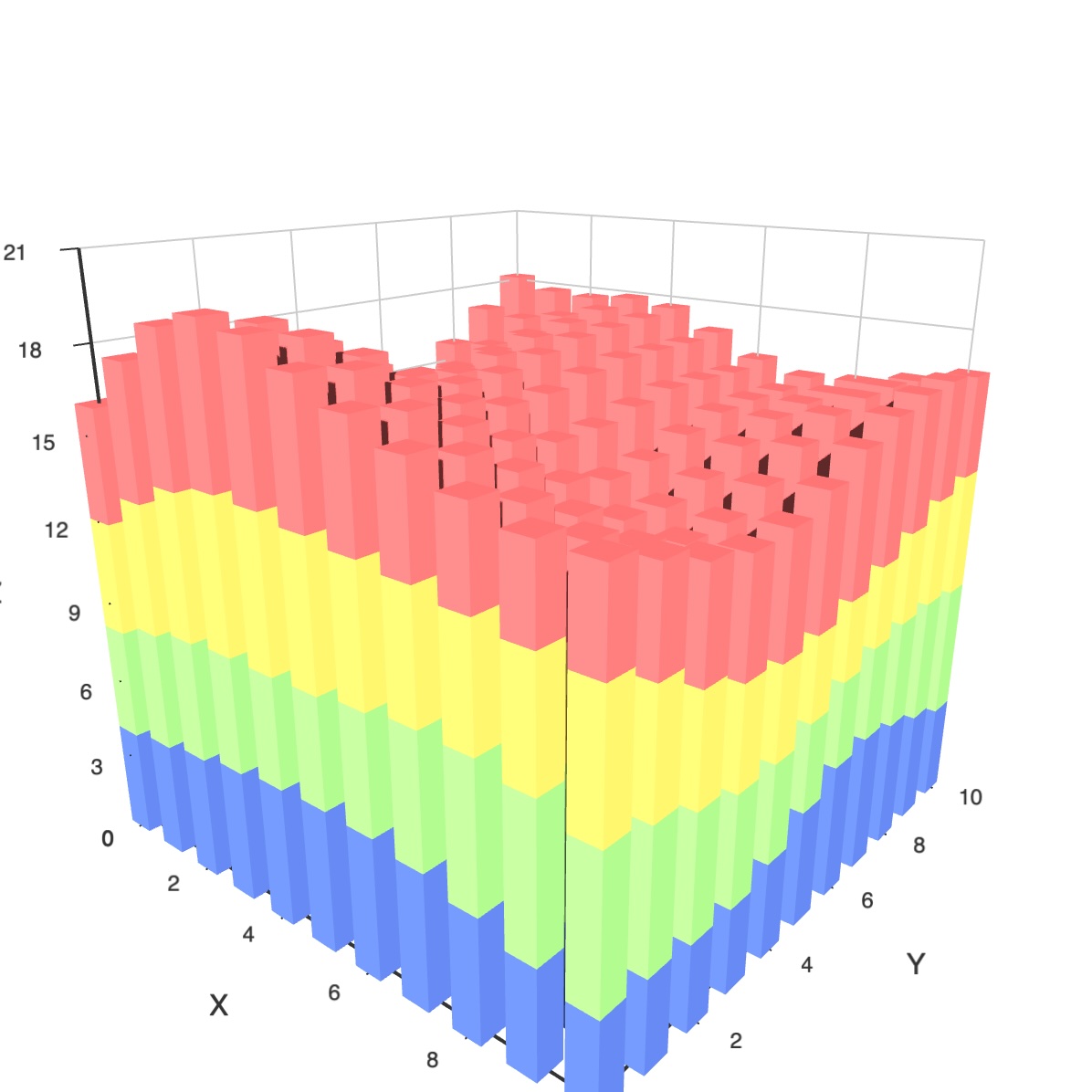

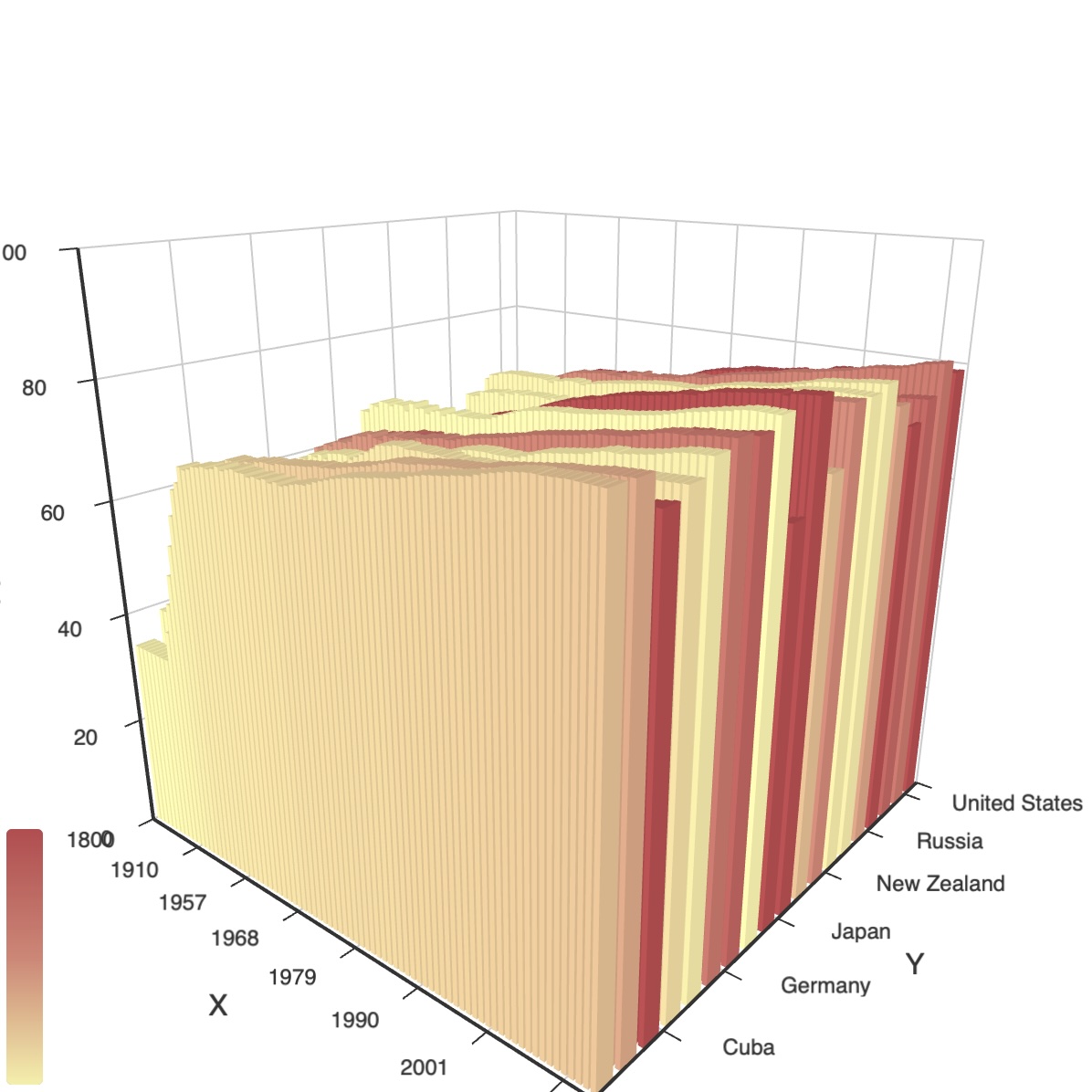

3D Bar with Dataset3D Bar with Dataset Stacked 3D BarStacked 3D Bar Transparent 3D BarTransparent 3D Bar

3D Line

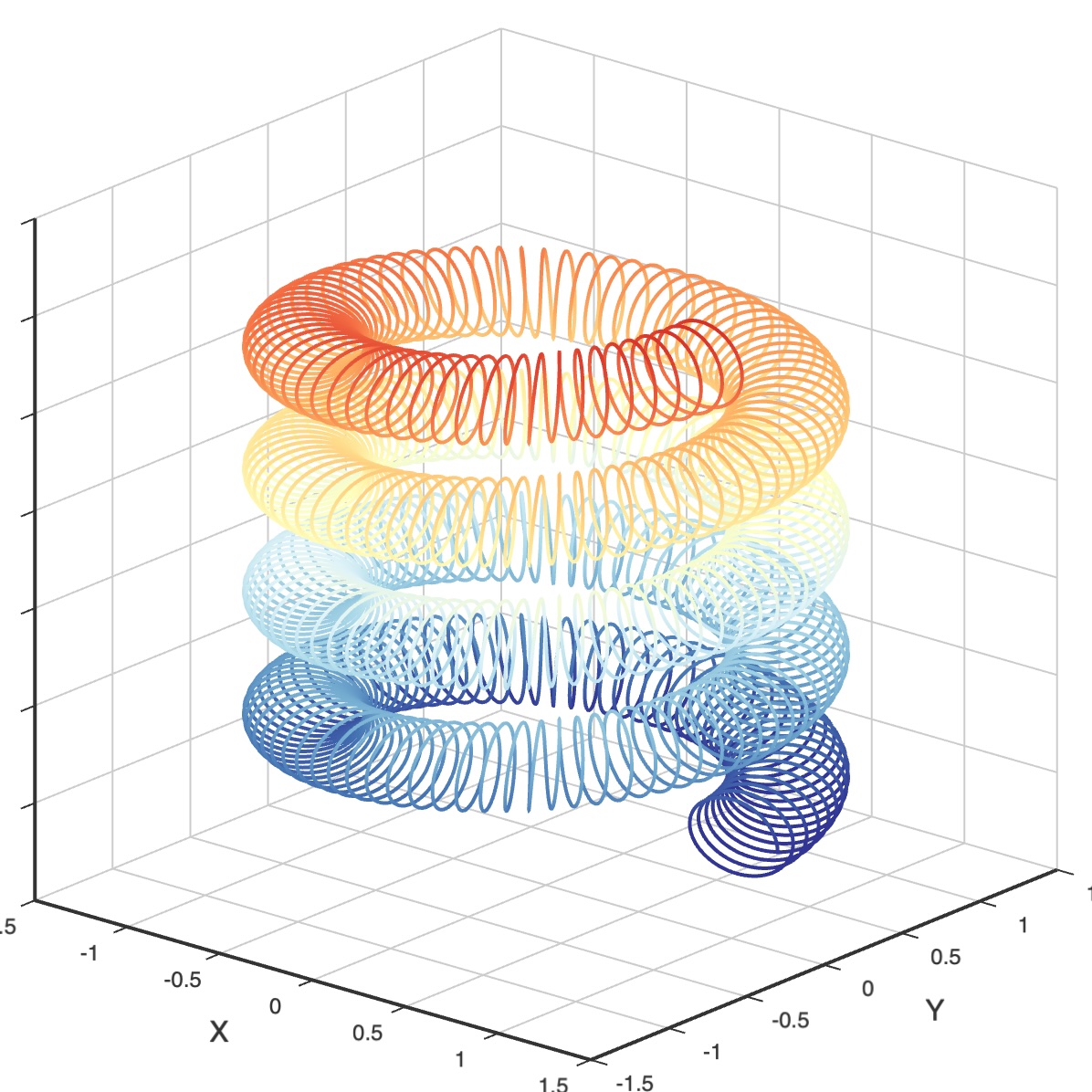

Orthographic ProjectionOrthographic Projection

기타

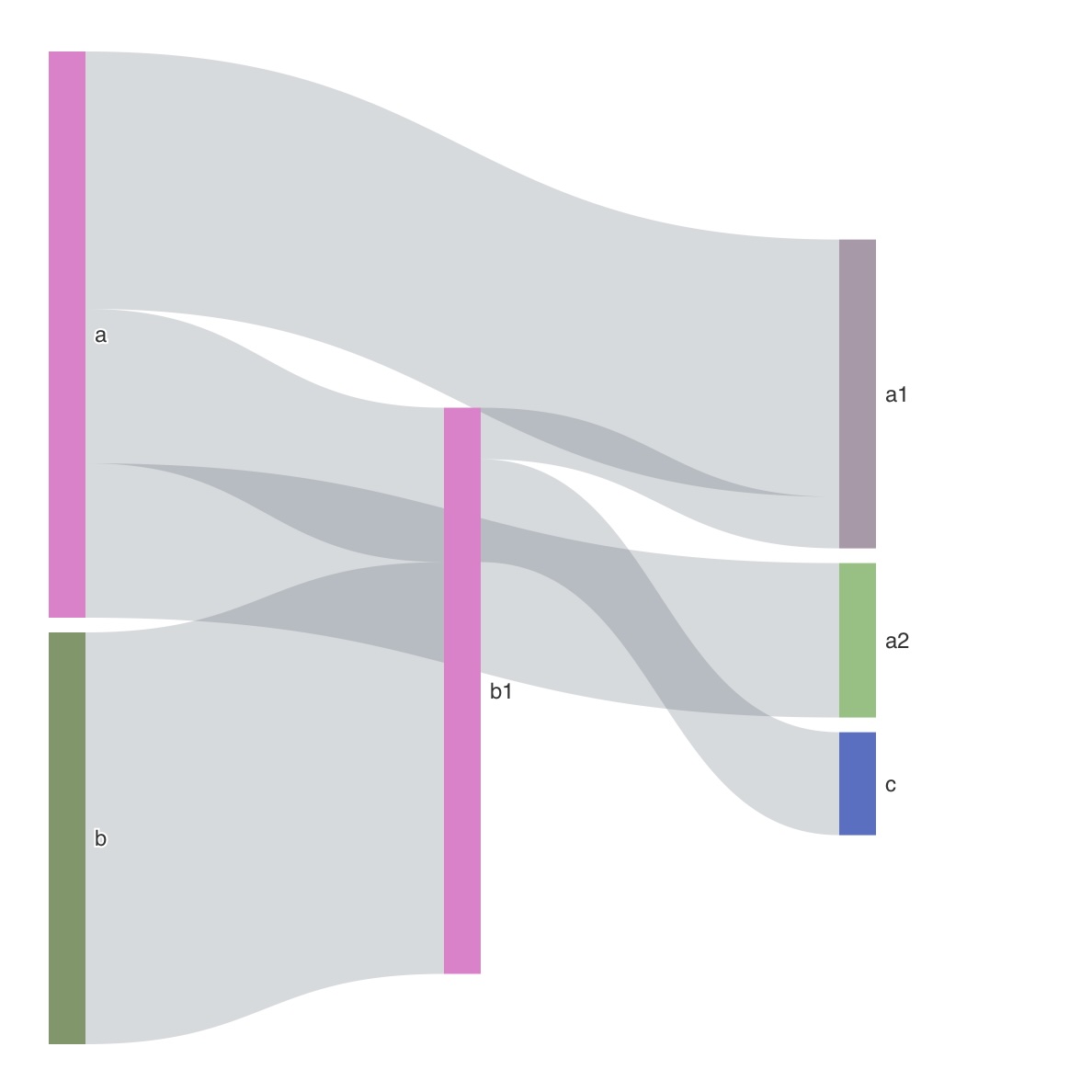

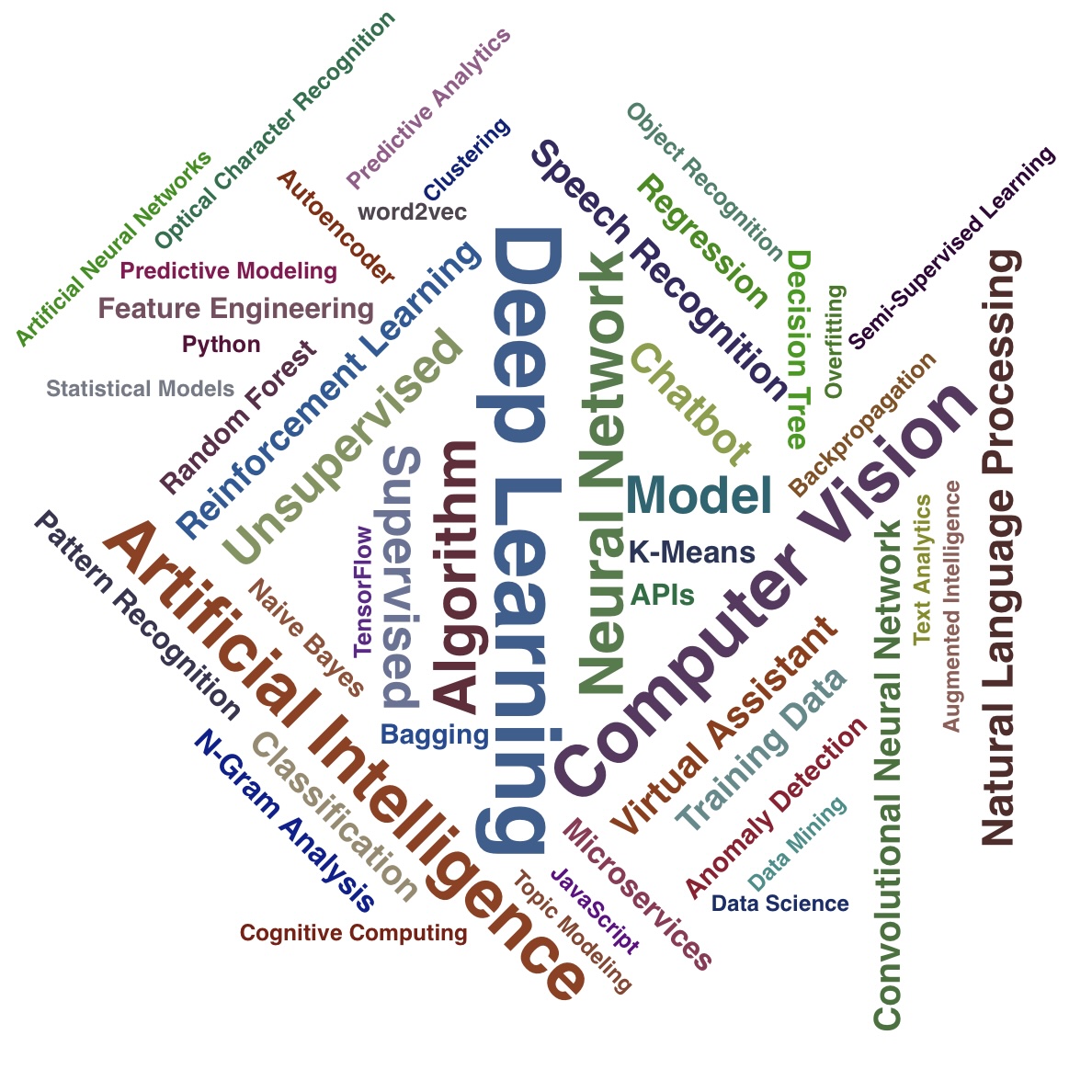

Basic SankeyBasic Sankey Word CloudWord Cloud GEO SVG LinesGEO SVG Lines

Themes

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

FAKE( arrange(1, 100, 1))
MAPVALUE(1, sin(2 * PI * 5 * value(0)/100) )
MAPVALUE(2, sin(2 * PI * 5 * (value(0)+5)/100) )
MAPVALUE(3, sin(2 * PI * 5 * (value(0)+10)/100) )
CHART(
    size("500px", "200px"),
    theme("dark"),
    chartOption({
        title:{ text:"theme(dark)" },
        xAxis:{ data:column(0), axisLabel:{show: false} },
        yAxis:{},
        series:[
            {type:"line", data:column(1), name:"series1"},
            {type:"line", data:column(2), name:"series2"},
            {type:"line", data:column(3), name:"series3"},
        ],
        legend:{ bottom: 10 }
    })
)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

SCRIPT({
    for( i = 1; i <= 100; i++) {
        $.yield(
            i,
            Math.sin(2 * Math.PI * 5 * i / 100),
            Math.sin(2 * Math.PI * 5 * (i + 5) / 100),
            Math.sin(2 * Math.PI * 5 * (i + 10) / 100)
        )
    }
})
CHART(
    size("500px", "200px"),
    theme("dark"),
    chartOption({
        title:{ text:"theme(dark)" },
        xAxis:{ data:column(0), axisLabel:{show: false} },
        yAxis:{},
        series:[
            {type:"line", data:column(1), name:"series1"},
            {type:"line", data:column(2), name:"series2"},
            {type:"line", data:column(3), name:"series3"},
        ],
        legend:{ bottom: 10 }
    })
)

아래 이미지는 각 테마를 적용한 차트 예시입니다.

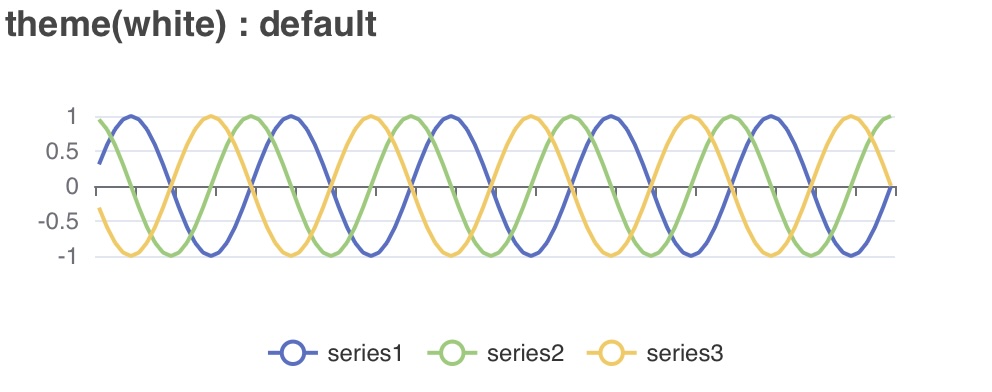

white

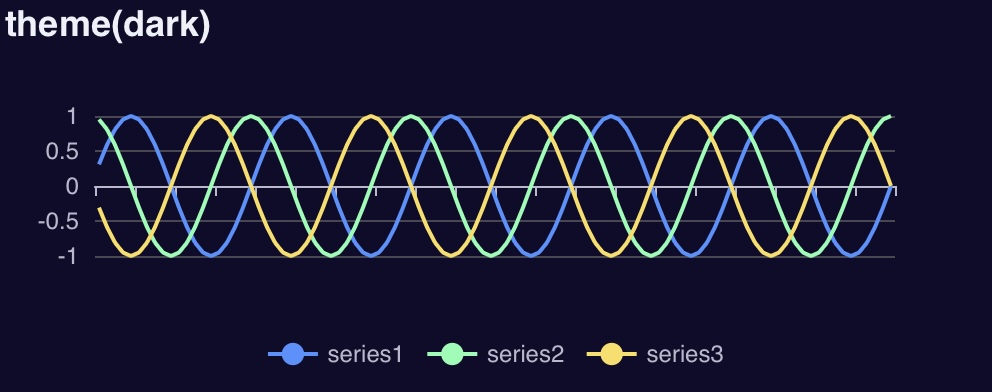

dark

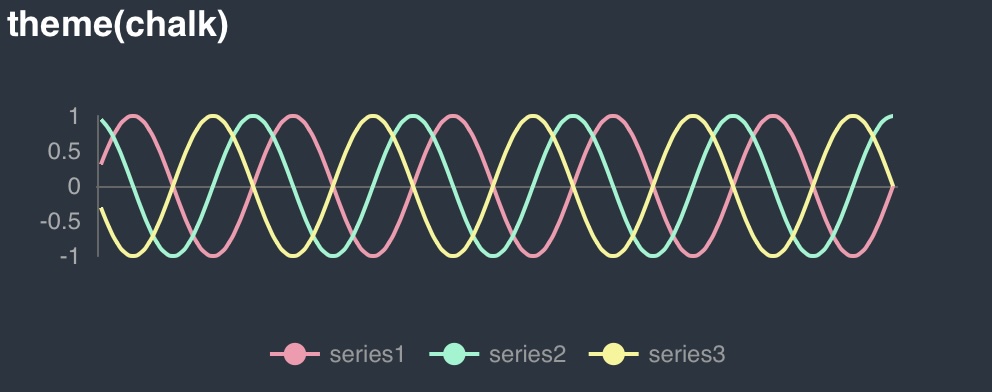

chalk

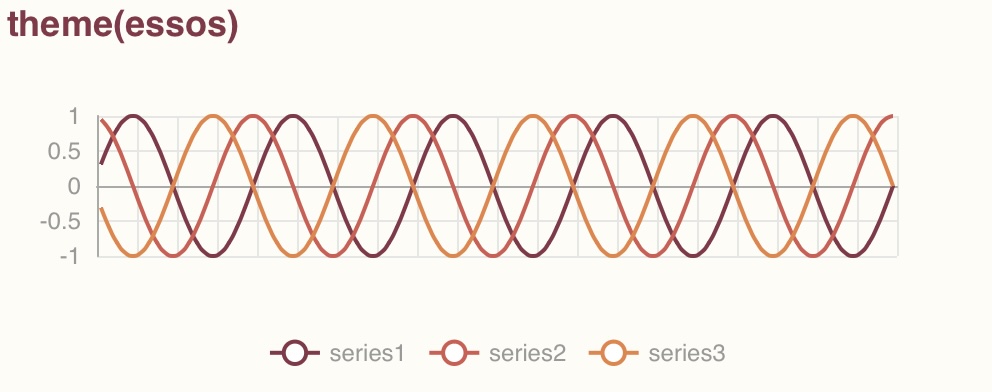

essos

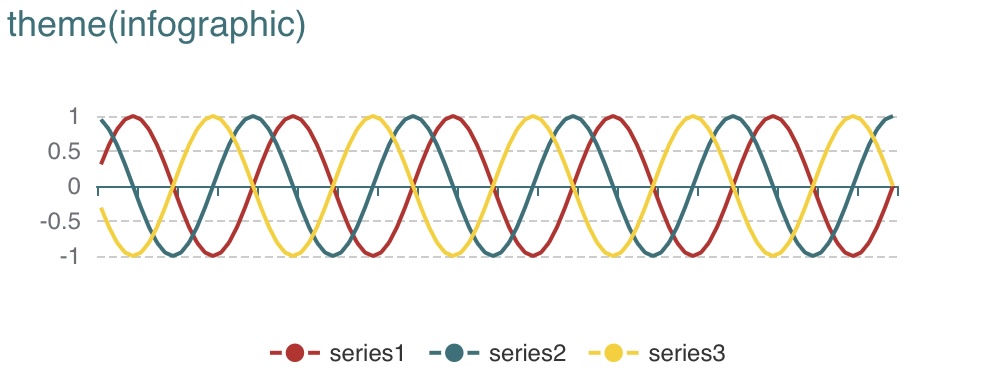

infographic

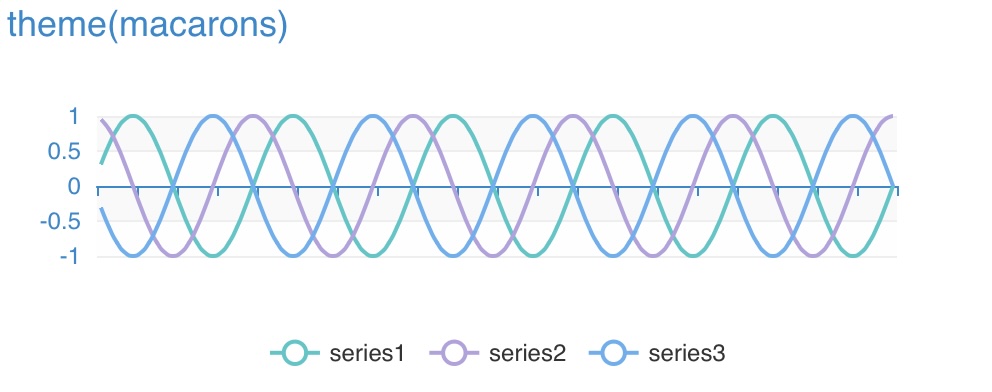

macarons

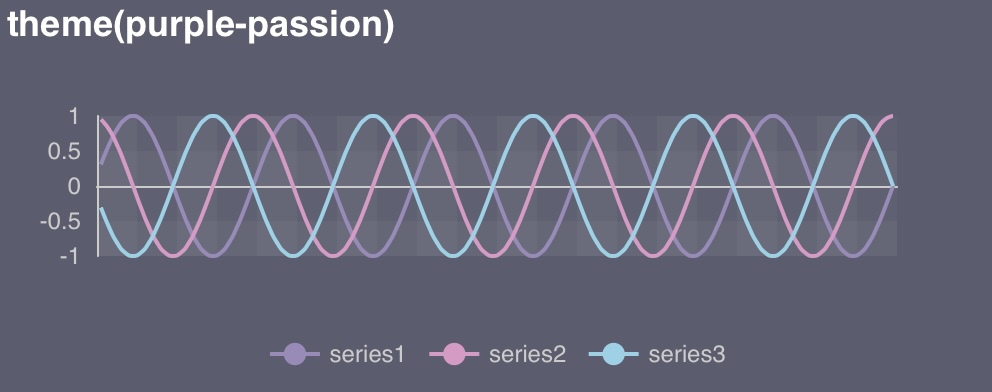

purple-passion

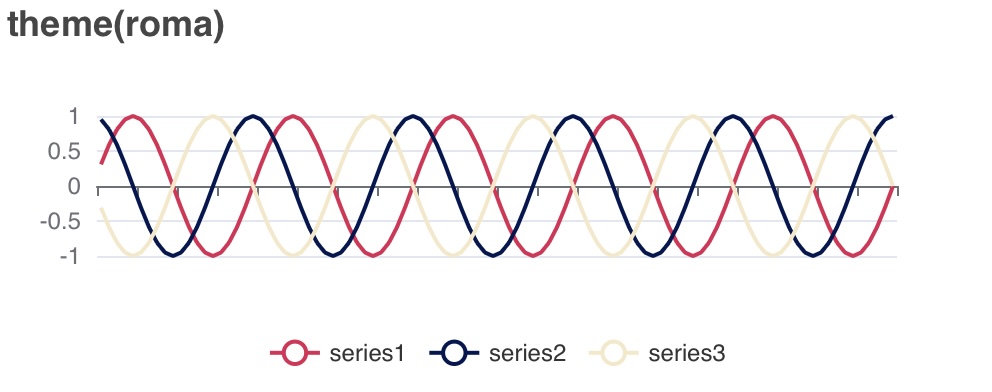

roma

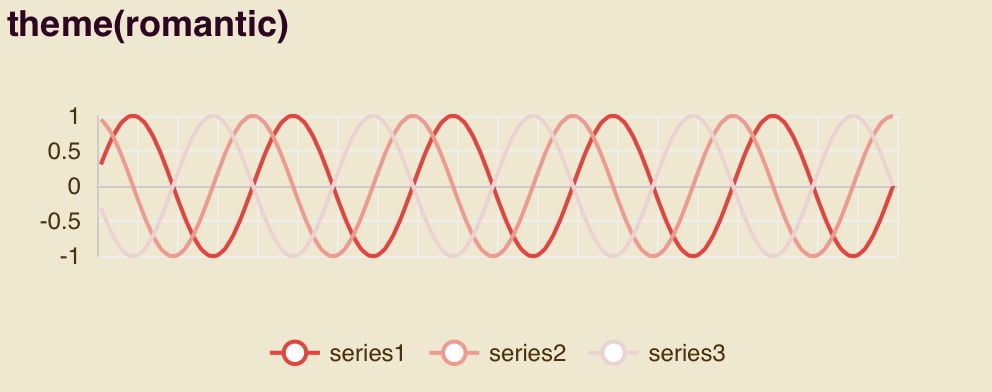

romantic

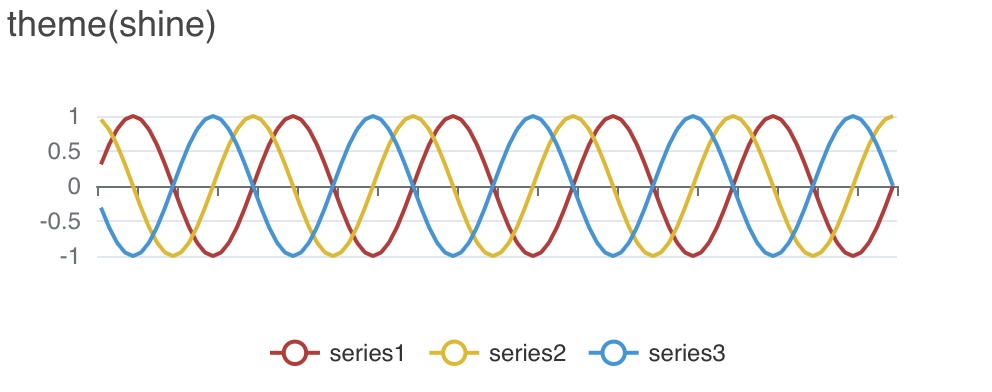

shine

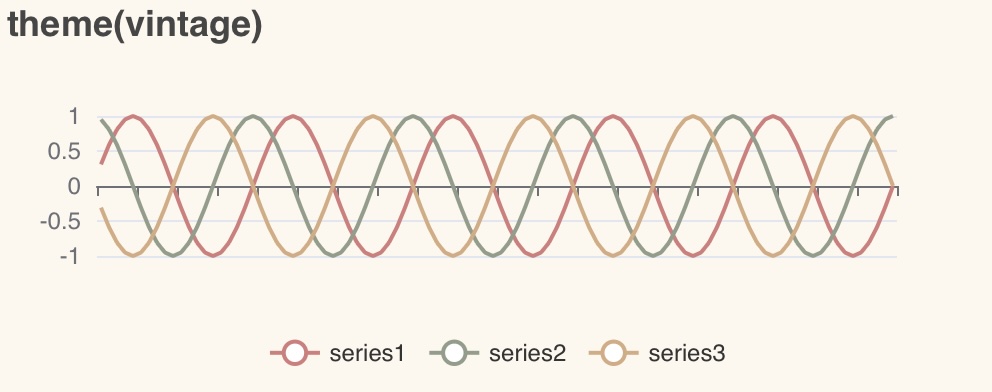

vintage

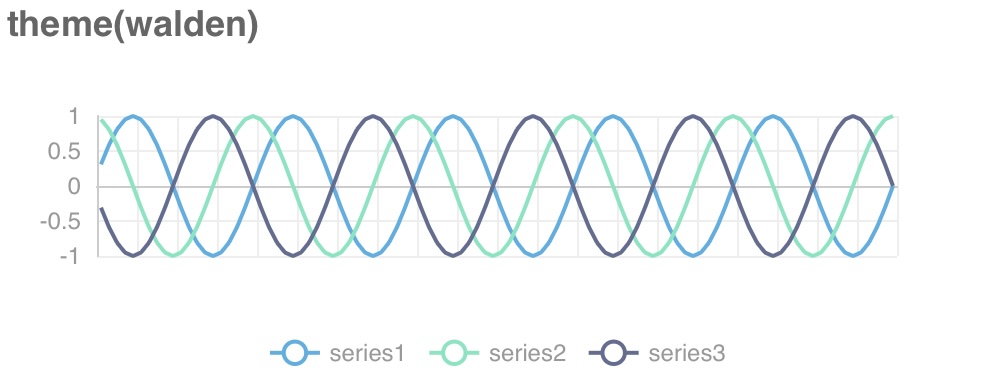

walden

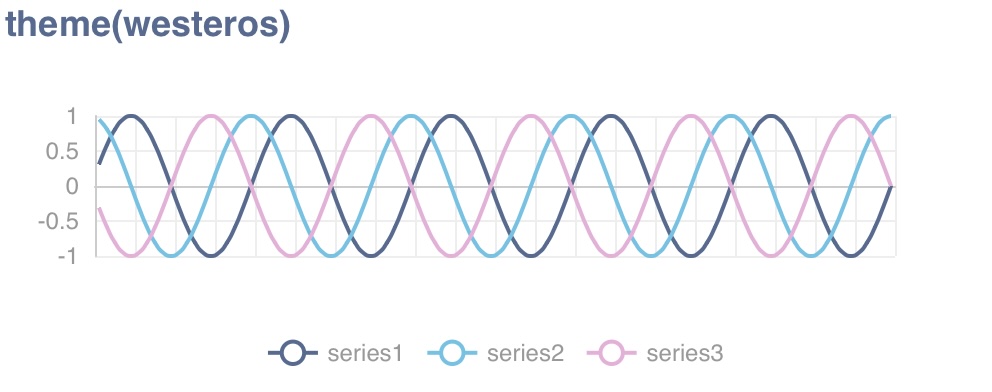

westeros

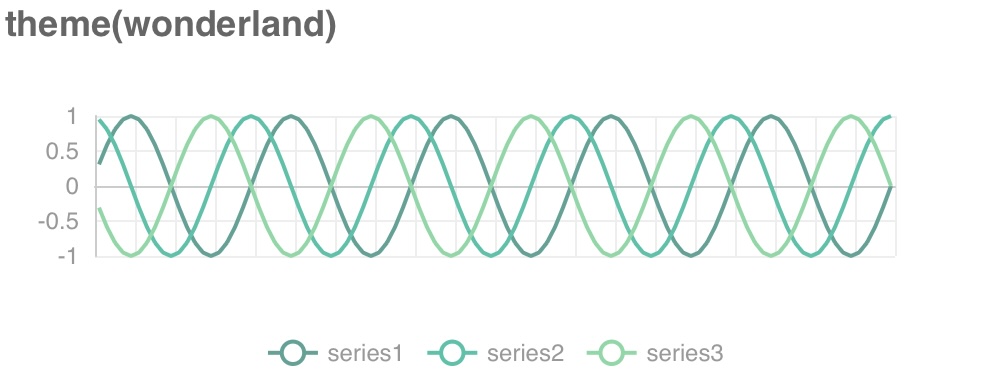

wonderland
