HTML()

The HTML() SINK generates an HTML document or an element as output, using the provided template language for formatting. This allows you to fully customize the structure and appearance of the HTML output based on your query results.

Syntax: HTML(templates...) Since v8.0.53

  • templates: One or more template strings or file(path) references. Each argument can be a direct template string or a file path using file(path) to load the template from a file. The template content uses the Go HTML template language. For more information, see the template documentation.
  • cache() cache result data. see Cache Result Data for details.

Within the template, you have access to a value object that exposes the current record’s field values and row number. The following fields and properties are available within the HTML template context:

Methods

  • {{ .Columns }}
  • {{ .Column <idx>}}
  • {{ .Values }}
  • {{ .Value <idx> }}
  • {{ .ValueHTMLAttr <idx> }}
  • {{ .ValueCSS <idx> }}
  • {{ .ValueJS <idx> }}
  • {{ .ValueURL <idx> }}
  • {{ .ValueString <idx> }}
  • {{ .V.<field> }}
  • {{ .Num }}

Functions

timeformat

Syntax

{{ timeformat <format> <timezone> }}

Usage example

1
2
3
4
5
6
7
8
SCRIPT({
    const { now } = require("@jsh/system");
    $.yield(now(), "Hello World");
})
HTML({
    <li>{{ $.Value 0 | timeformat "RFC3339" "UTC" }}
    <li>{{ $.Value 1 }}
})
<li>2025-05-29T08:32:33Z
<li>Hello World

format

Usage example

1
2
3
4
5
6
7
SCRIPT({
    $.yield(3.1415, "Hello World");
})
HTML({
    <li>{{ $.Value 0 | format "%.2f" }}
    <li>{{ $.Value 1 | format "Say: %s?" }}
})
<li> 3.14
<li> Say: Hello World?

param

1
2
3
4
5
6
7
SCRIPT({
    $.yield(3.1415, "Hello World");
})
HTML({
    <li> {{ param "prefix" }} {{ $.Value 0 }}
    <li> {{ param "prefix" }} {{ $.Value 1 }}
})
  • Invoke the TQL script with parameters ?param=Line.
<li> Line 3.1415
<li> Line Hello World

paramDefault

1
2
3
4
5
6
7
SCRIPT({
    $.yield(3.1415, "Hello World");
})
HTML({
    <li> {{ paramDefault "prefix1" "Line1" }} {{ $.Value 0 }}
    <li> {{ paramDefault "prefix2" "Line2" }} {{ $.Value 1 }}
})
<li> Line1 3.1415
<li> Line2 Hello World

toLower

1
2
3
4
5
6
7
SCRIPT({
    $.yield(3.1415, "Hello World");
})
HTML({
    <li> {{ $.Value 0 | format "%.2f" }}
    <li> {{ $.Value 1 | toLower | format "Say: %s?" }}
})
<li> 3.14
<li> Say: hello world?

toUpper

1
2
3
4
5
6
7
SCRIPT({
    $.yield(3.1415, "Hello World");
})
HTML({
    <li> {{ $.Value 0 | format "%.2f" }}
    <li> {{ $.Value 1 | toUpper | format "Say: %s?" }}
})
<li> 3.14
<li> Say: HELLO WORLD?

Usages

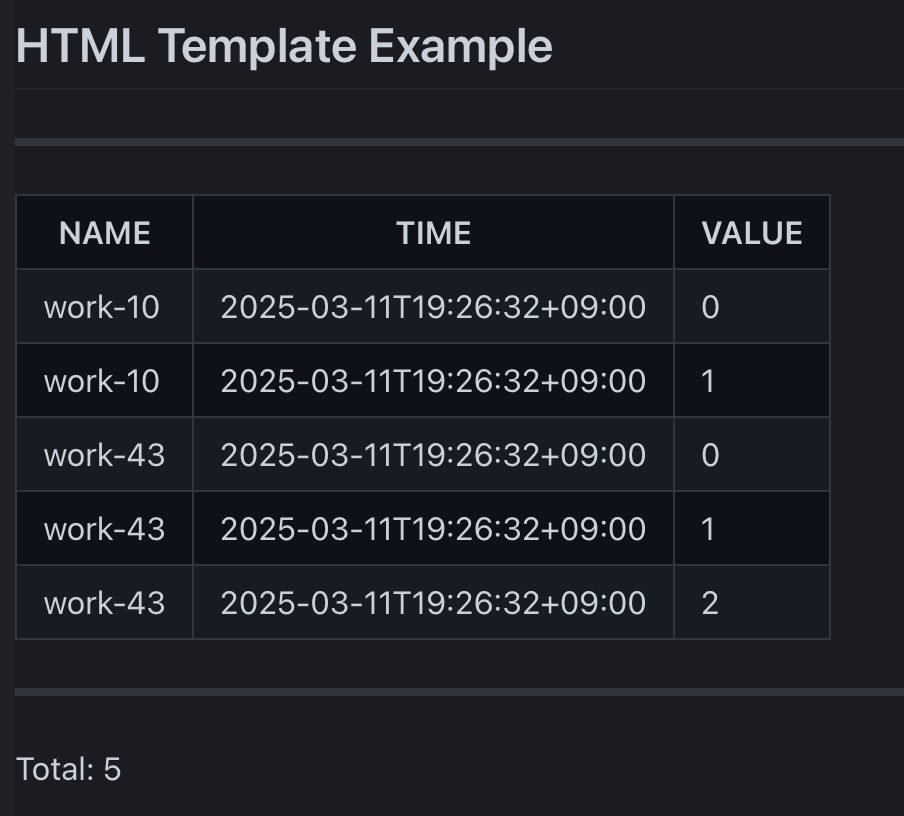

.V is a map object containing field names as keys and their corresponding values.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
SQL(`SELECT NAME, TIME, VALUE FROM EXAMPLE LIMIT 5`)
HTML({
  {{ if .IsFirst }}
    <html>
    <body>
      <h2>HTML Template Example</h2>
      <hr>
      <table>
      <tr>
        {{range .Columns}}
          <th>{{ . }}</th>
        {{end}}
      </tr>
  {{ end }}
      <tr>
        <td>{{ .V.NAME }}</td>
        <td>{{ .V.TIME | timeformat "RFC3339" "Asia/Seoul"}}</td>
        <td>{{ .V.VALUE }}</td>
      </tr>
  {{ if .IsLast }}
      </table>
      <hr>
        Total: {{ .Num }}
    </body>
    </html>
  {{ end }}
})

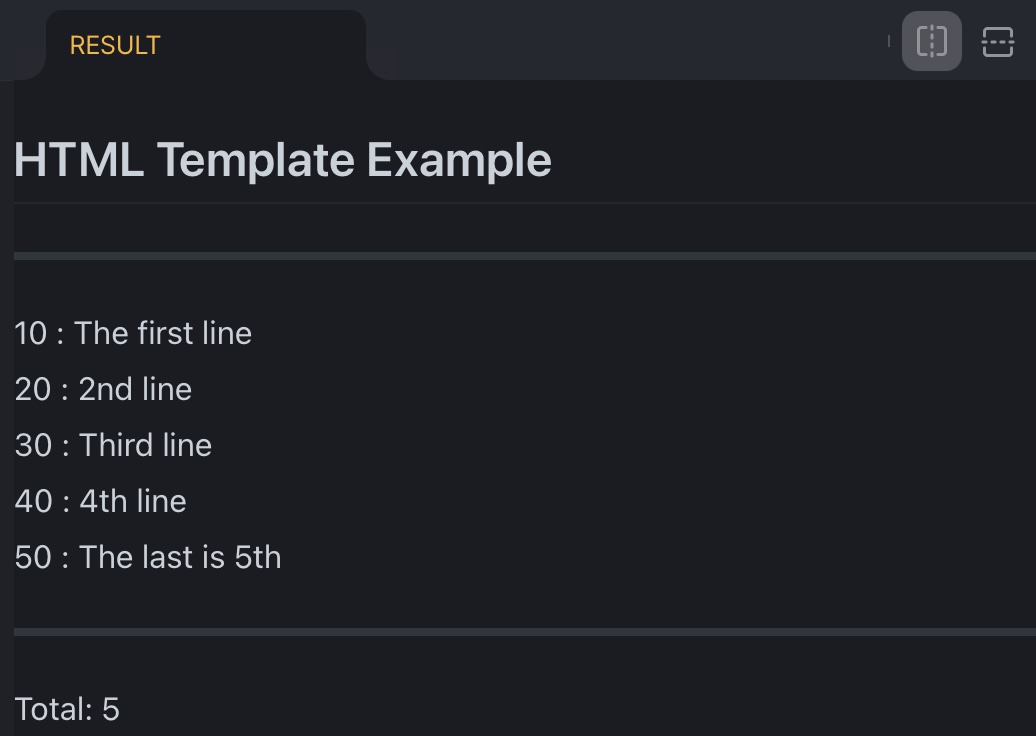

.Value is a function that accesses the fields of the current record by their index.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
FAKE( csv(`
10,The first line
20,2nd line
30,Third line
40,4th line
50,The last is 5th
`))
HTML({
    {{ if .IsFirst }}
        <html>
        <body>
            <h2>HTML Template Example</h2>
            <hr>
    {{ end }}

    <li>{{ .Value 0 }} : {{ .Value 1 }}

    {{ if .IsLast }}
        <hr>
        Total: {{ .Num }}
        </body>
        </html>
    {{ end }}
})

.Values is an array containing all field values of the current record.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
FAKE( csv(`
10,The first line
20,2nd line
30,Third line
40,4th line
50,The last is 5th
`))
HTML({
    {{ if .IsFirst }}
        <html>
        <body>
            <h2>HTML Template Example</h2>
            <hr>
    {{ end }}

    <li>{{ (index .Values 0) }} : {{ (index .Values 1 ) }}

    {{ if .IsLast }}
        <hr>
        Total: {{ .Num }}
        </body>
        </html>
    {{ end }}
})

Contexts

The template understands HTML, CSS, JavaScript and URIs. It adds sanitizing functions to each simple action pipeline, so given the excerpt.

Each {{.Value 0}}, {{.Value 1}}, and {{.Value 2}} is overwritten to add escaping functions as necessary. In this case it becomes

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
SCRIPT({
    $.yield(
        `http://maven.org/`,
        `<img src="https://docs.machbase.com/images/java_logo_32.png">`,
        "Java")
    $.yield(
        `http://npmjs.com/`,
        `<img src="https://docs.machbase.com/images/js_logo_32.png">`,
        "JavaScript")
})
HTML({
    <li>
        <a href="{{.Value 0}}">
        {{.ValueHTML 1}}{{.Value 2}}
        </a>
    </li>
})
  • Output:
<li>
  <a href="http://maven.org/">
    <img src="https://docs.machbase.com/images/java_logo_32.png">Java
  </a>
</li>
<li>
  <a href="http://npmjs.com/">
    <img src="https://docs.machbase.com/images/js_logo_32.png">JavaScript
  </a>
</li>

Assuming {{.Value 0}} is O'Reilly: How are <i>you</i>?, the examples below shows how {{.Value 0}} appears when used in context.

1
2
3
4
5
6
7
SCRIPT({ $.yield(`O'Reilly: How are <i>you</i>?`) })
HTML({
  {{.Value 0}}
})

// Output:
//  O&#39;Reilly: How are &lt;i&gt;you&lt;/i&gt;?
1
2
3
4
5
SCRIPT({ $.yield(`O'Reilly: How are <i>you</i>?`) })
HTML(`<a href="/path?p={{.ValueHTML 0}}">`)

// Output:
//  <a href="/path?p=O%27Reilly%3a%20How%20are%20%3ci%3eyou%3c%2fi%3e%3f">
1
2
3
4
5
SCRIPT({ $.yield(`O'Reilly: How are <i>you</i>?`) })
HTML(`<a onx='f("{{.Value 0}}")'>`)

// Output:
//  <a onx="f('O\u0027Reilly: How are \u003ci\u003eyou\u003c\/i\u003e?')">
SCRIPT({ $.yield(`Hello World?`, `function doMsg(msg){ console.log(msg); }`) })
HTML({
  <script>
  {{.ValueJS 1}}
  </script>
  <a onClick='doMsg("{{.Value 0}}")'>here</a>
})

// Output:
// <script>
// function doMsg(msg){ console.log(msg); }
// </script>
// <a onClick='doMsg("Hello World?")'>here</a>

Non-string values can be used in JavaScript contexts. If the record is an object:

in the escaped template

1
2
3
4
5
6
SCRIPT({
    $.yield({A: "foo", B:"bar"})
})
HTML({
    <script>var pair = {{ .Value 0 }};</script>
})

then template output is

<script>var pair = {"A":"foo","B":"bar"};</script>

Unescaped Strings

By default, the template assumes that all pipelines produce a plain text string. It adds escaping pipline stages necessary to correctly and safely embed that plain text string in the appropriate context.

When a data value is not plain text, you can make sure it is not over-escaped by marking it with its type.

Types HTML, JS, URL, and others can carry safe content that is exempted from escaping.

The template:

1
2
3
4
5
6
SCRIPT({
    $.yield(`<b>World</b>`)
})
HTML({
    Hello, {{ .ValueHTML 0 }}!
})

to produce

Hello, <b>World</b>!

instead of

Hello, &lt;b&gt;World&lt;b&gt;!
